Name: BRC-600 Horizontal Round Ball Profiling Machine With 400-600mm Blade Diameter
Brand: Fujian Xianda Machinery co.,ltd
SKU: BRC-600
Price: 11,016.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Condition: New

Blade Diameter: 400-600mm

Weight: 3500KGS

Dimension(l*w*h): 2900*1500*3200mm

Certification: CE,ISO,FDA,Patented,ISO9001

Use: Cutting Shape Of Vase,Balls,Column Bases,Column Caps And Other Rotary Stone Materials.

Warranty: 1 Year

After-sales Service Provided: Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation

Highlight:

Horizontal Round Ball Profiling Machine

BRC-600 Round Ball Profiling Machine

Basic Infomation

Place of Origin: Jinjiang, Fujian, China

Brand Name: Xianda Machinery

Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

Model Number: BRC-600

Payment & Shipping Terms

Packaging Details: Plastic Package, Suitable For Sea Transportation

Delivery Time: 1 Month

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 1000 Sets/Year

Gallery

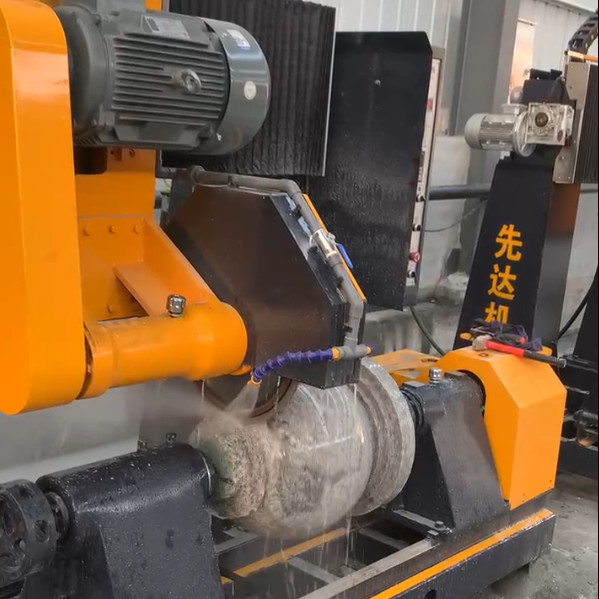

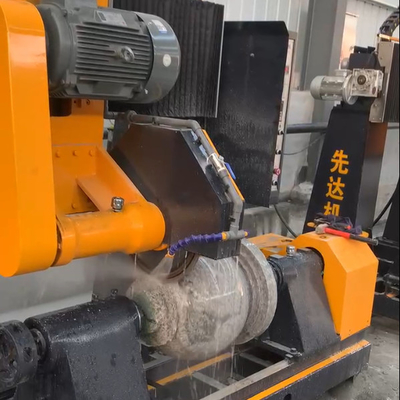

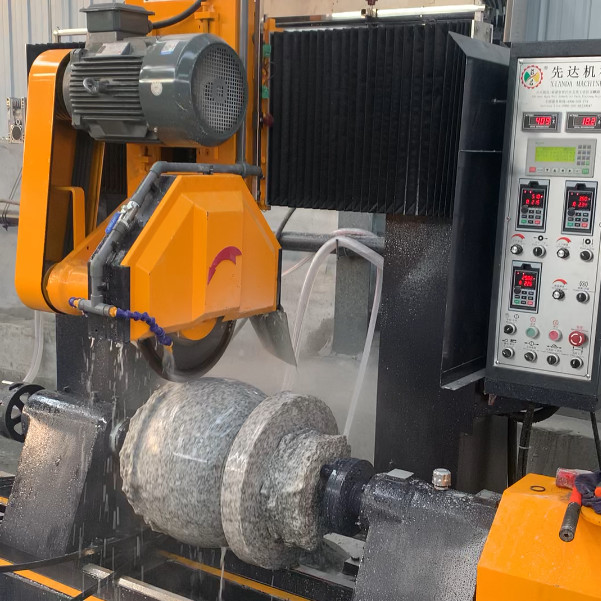

BRC-600 Horizontal Round Ball Profiling Machine With 400-600mm Blade Diameter

Product Description

BRC-600 Horizontal Round Ball Profiling Machine With 400-600mm Blade Diameter

Attribute	Value
Condition	New
Blade diameter	400-600mm
Weight	3500KGS
Dimension(lwh)	290015003200mm
Certification	CE,ISO,FDA,Patented,ISO9001
Use	Cutting Shape of Vase,Balls,Column Bases,Column Caps and Other Rotary Stone Materials.
Warranty	1 Year
After-sales service provided	Online support,Video technical support,Field maintenance and repair service,Field installation

BRC-600 Horizontal Round Ball Profiling Machine

Product Overview

The BRC-600 Round Ball Profiling Machine eliminates manual polishing limitations with its fully automated gantry system. Engineered for precision shaping of rotating stone materials - from architectural columns to decorative spheres - this CNC powerhouse delivers unmatched consistency while slashing labor costs by 70%.

Key Features & Benefits

Gantry Integrated Structure: Industrial-grade rigidity for vibration-free machining of granite/marble with 30% faster cycle times vs. conventional profilers
Fiber-Optic Measurement System: Laser-guided accuracy (±0.1mm) for complex contours with real-time profile scanning and auto-correction
Microcomputer CNC Control: Intuitive touchscreen programming for any shape including spheres, vases, column bases/caps, and custom rotary forms with storage for 100+ designs
Full Automation Advantage: 1 operator can manage 3-5 machines simultaneously, solving manual shortcomings like inconsistent finishes, high waste, and skill dependency
Cost-Saving Performance: 60% less material waste vs. hand carving with 24/7 continuous production capability

Technical Specifications

Parameter	Unit	BRC-600
Blade diameter	mm	400-600
Max processing diameter	mm	600/1pcs
Max processing length	mm	1000
Main motor	kw	15/18(Optional)
Gross power	kw	20/23.5(Optional)
Gross weight	kg	3500
Outline dimension	mm	290015003200
Water consumption	m3/h	2
