Product Description:

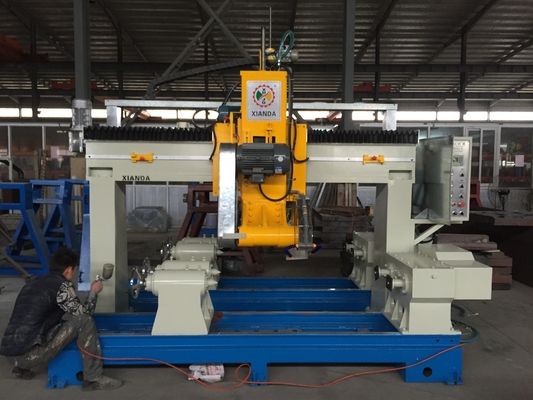

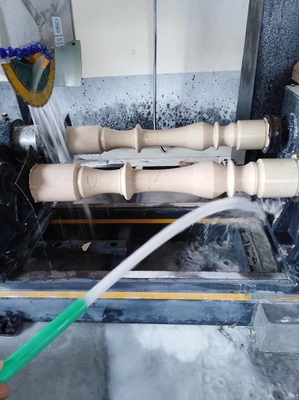

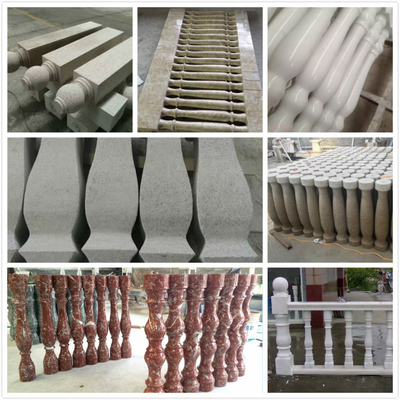

This machine adopts PLC / CNC system, three inverter, bridge structure, synchronous lifting and Lef+-Right walking, easy to operate,practical and high efficiency. Dedicated to the processing of baluster, pilar, column base and column caps, roadblock and others.
Applications:
This Column Cutting Machine is suitable for a wide range of applications and scenarios. For example, it can be used in stone processing factories and workshops to cut and profile large stone blocks into slabs, tiles, and other shapes. It can also be used in construction and decoration projects, such as building facades, walls, floors, and countertops. In addition, the machine can be used in the production of stone furniture, such as tables, chairs, and sculptures.
Support and Services:
The Column Cutting Machine product technical support and services include:
- Installation guidance and support.
- Training and education on how to operate and maintain the machine.
- Regular maintenance and repair services to ensure optimal performance.
- Replacement parts and components as needed.
- 24/7 technical support for any issues or questions.
| Parameter |
Unit |
FHRC-200/400-4 CHRC-200/400-4 |
FHRC-250/500-4 CHRC-250/500-4 |
| Maximum blade diameter |
mm |
500 |
500 |
| Max processing diameter |
mm |
200/4pcs,400/2pcs |
250/4pcs,500/2pcs |
| Processing length |
mm |
50-1500 |
50-1500 |
| Main motor |
kw |
11*2/15*2(Optional) |
11*2/15*2(Optional) |
| Gross power |
kw |
29.5/37.5(Optional) |
29.5/37.5(Optional) |
| Outline dimension |
mm |
3600*1850*3000 |
3600*2000*3200 |
| Gross power |
kg |
4500 |
5000 |
| Water consumption |
m³/h |
6 |
6 |
