Cutting Edge | Smooth |
Safety Protection | High |
Product Name | Stone Profile Cutting Machine |
Maintenance | Easy |
Power Supply | AC |
Operation Mode | Automatic |
Cutting Depth | High |
Cutting Width | Wide |
Trolley Size | 1300*3000mm/1400*3500mm |
Cutting Method | Laser |
Cutting Accuracy | High |
Model No | LCMM-1300/1800 |
Application | Machinery & Hardware |
Max Cutting Diameter | 2500mm |
Usage | Cutting |
Hs Code | 84641090 |
Max Cutting Height | 1150mm |
Blade Diameter Range | 400-600mm |
Max Cutting Depth | 150mm |
Power Source | Electric |

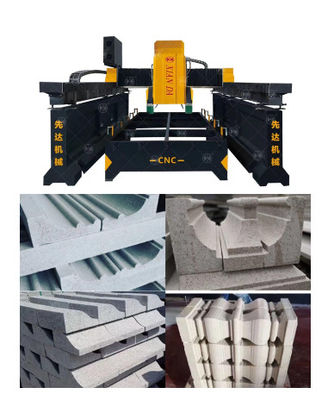

Dual beam bridge type linear cutting and milling machine for large scale special-shaped stone
This machine adopts three-axis CNC system control, bridge double beam heavy structure. Cutting Head lifting structure uses four guide column + sleeve copper, let right traveling use bottom wheel, combining the accuracy of linear guide rail and the power of profiling machine. It has the advantages of high stroke, high efficiency, high stability, etc. The system includes rough cutting, fine cutting, fine milling and other functions, and is suitable for large-scale special-shaped stone processing.
Parameter | Unit | BLMM-1800MAX-A | BLMM-1800MAX-B |
---|---|---|---|
Blade diameter | mm | 400-700 | 400-700 |
Lifting travel | mm | 600 | 600 |
Processing length | mm | 3500 | 3500 |
Trolley size | mm | 1800*3500 | 1800*3500 |
Main motor | kw | 18.5/22(optional) | 18.5/22(optional) |
Gross power | kw | 24/27.5(optional) | 24.5/28(optional) |
Y axis transmission structure | / | Walking wheel | Linear guide |
Y axis transmission mode | / | single Y axis drive | Dual Y axis drive |
Outline dimension | mm | 6500*4350*3600 | 6200*4100*3600 |
Water consumption | m³/h | 6 | 6 |
We are committed to providing our customers with the highest level of technical support and services to ensure the optimal performance and longevity of their Stone Profile Cutting Machine.
