Home /Products/Column Cutting Machine/Metal Column Cutting Machine 7.5kw Main Motor with Large Cutting Capacity AC Power Supply

Metal Column Cutting Machine 7.5kw Main Motor with Large Cutting Capacity AC Power Supply

1 SET
MOQ
To be negotiable
Price
Metal Column Cutting Machine 7.5kw Main Motor with Large Cutting Capacity AC Power Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Column Profiling Machine
Material: Casting
Main Motor: 11*2/15*2kw
Max Processing Diameter: 500mm
Cutting Capacity: Large
Power Supply: AC
Power Consumption: Low
Worktable Size: 1200*3500mm
Highlight:

7.5kw Column Cutting Machine

,

AC Power Supply Column Cutting Machine

,

Large Column Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: FHRC-200/400-4 CHRC-200/400-4
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
Metal Column Cutting Machine 7.5kw Main Motor with Large Cutting Capacity AC Power Supply
Product Attributes
Attribute Value
Name Column Profiling Machine
Material Casting
Main Motor 11*2/15*2kw
Max Processing Diameter 500mm
Cutting Capacity Large
Power Supply AC
Power Consumption Low
Worktable Size 1200*3500mm
Product Description
The Column Profiling Machine is a robust industrial solution designed for precision cutting and polishing applications.

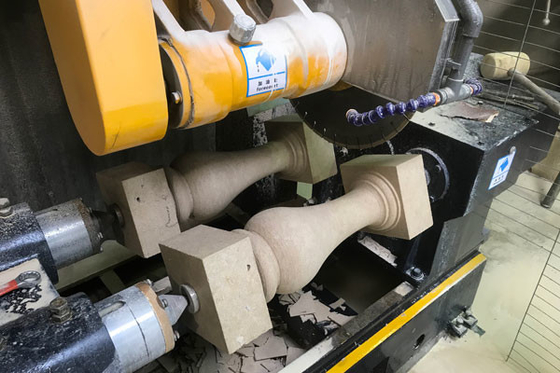

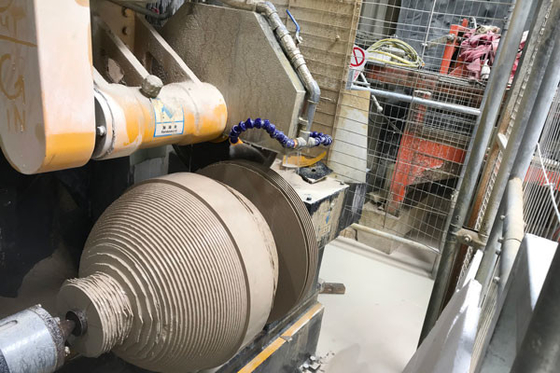

Metal Column Cutting Machine 7.5kw Main Motor with Large Cutting Capacity AC Power Supply 0 Metal Column Cutting Machine 7.5kw Main Motor with Large Cutting Capacity AC Power Supply 1 Metal Column Cutting Machine 7.5kw Main Motor with Large Cutting Capacity AC Power Supply 2 Metal Column Cutting Machine 7.5kw Main Motor with Large Cutting Capacity AC Power Supply 3
This multi-functional machine combines cutting and polishing capabilities in one robust unit. Its solid metal construction minimizes vibrations for smooth operation, while the high cutting force enables efficient material removal. The AC power supply and 7.5kw main motor deliver exceptional performance for demanding industrial applications.
Key Features
  • High cutting force for efficient material processing
  • Precision casting construction for durability
  • Large cutting capacity for industrial applications
  • High cutting accuracy for quality results
  • Dual-function operation as both cutting and polishing machine
  • Compatible with various polishing accessories
  • Part of stone profiling machinery series
Technical Specifications
Parameter Unit FHRC-200/400-4 CHRC-200/400-4 FHRC-250/500-4 CHRC-250/500-4
Maximum blade diameter mm 500 500
Max processing diameter mm 200/4pcs,400/2pcs 250/4pcs,500/2pcs
Processing length mm 50-1500 50-1500
Main motor kw 11*2/15*2(optional) 11*2/15*2(optional)
Gross power kw 29.5/37.5(optional) 29.5/37.5(optional)
Outline dimension mm 3600*1850*3000 3600*2000*3200
Gross weight kg 4500 5000
Water consumption m³/h 6 6
Applications
This versatile machine serves multiple functions in metalworking and construction industries. Its dual capability as both a cutting and polishing solution makes it ideal for applications requiring precise material removal followed by high-quality finishing. The machine is particularly valuable for operations that demand both efficiency and aesthetic quality in their finished products.
Customization Options
Brand Name: XIANDA MACHINERY
Origin: Jinjiang, Fujian, China
Certifications: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
MOQ: 1 SET
Packaging: Plastic Package, suitable for sea transportation
Delivery: 1 month
Payment: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Capacity: 1000 Sets/Year
Noise Level: Low
Packaging & Shipping
The machine is secured in industrial-grade wooden crates with metal strappings for maximum protection during transit. Shock-absorbing materials safeguard precision components, while clear 'Fragile' and 'Handle With Care' labels ensure proper handling. Each shipment includes all accessories and operational manuals after thorough pre-shipment inspection.
Tag:

11kw Baluster Cutting Machine

1400mm Column Cutting Machine

multi cutter granite machine 1150mm
