4 Axis Arc Slab Column Carving Machine For Marble Ganite Bulestone Jade Agate

1
MOQ
To Be Negotiable
Price
4 Axis Arc Slab Column Carving Machine For Marble Ganite Bulestone Jade Agate
Features Gallery Product Description Request A Quote
Features
Specifications
Air Speed: 15m/min
Type: CNC Machine
Weight: 1000kg
Spindle Power: 7.5KW
Power: Electric
Axis: 4-Axis
Material: Stone
Control System: CNC
Water Consumption: 1m3/H
Spindle Type: 1 Tilting Head/2 Tilting Head
Dimension Of Worktable: 2500*1500mm
Feed Height: 650mm
Outline Dimension: 3700*2410*3500mm
Highlight:

Marble Column Carving Machine

,

Arc Slab Column Carving Machine

,

4Axis Stone Carving Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: ACM-2515-1Q/ACM-3015-2Q
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
4 Axis Arc Slab Column Carving Machine For Marble Granite Bluestone Jade Agate
Product Specifications
Attribute Value
Air Speed 15m/min
Type CNC Machine
Weight 1000kg
Spindle Power 7.5KW
Power Electric
Axis 4-Axis
Material Stone
Control System CNC
Water Consumption 1m3/H
Spindle type 1 Tilting head/2 Tilting head
Dimension of worktable 2500*1500mm
Feed height 650mm
Outline dimension 3700*2410*3500mm
Technical Parameters
Parameter Unit ACM-2515-1Q ACM-3015-2Q
Spindle type / 1 Tilting 2 Tilting
Dimension of worktable mm 2500*1500 3000*1500
Feed height mm 650 650
Air speed m/min 13 12
Number of spindles pcs 1 2
Spindle power kw 7.5 7.5*2
Outline dimension mm 37000*2410*3500 4200*2410*3500
Water consumption m³/h 1 2

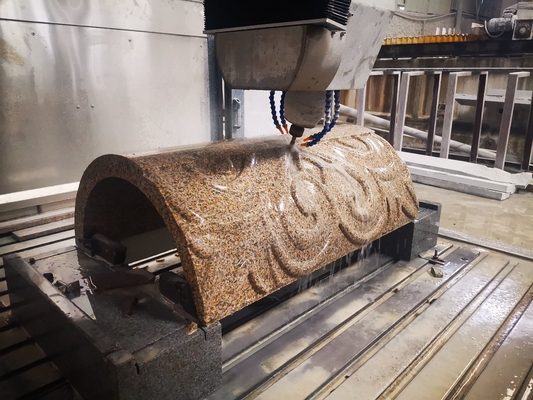

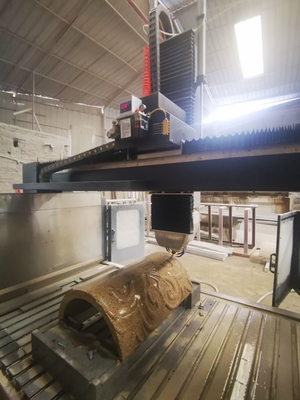

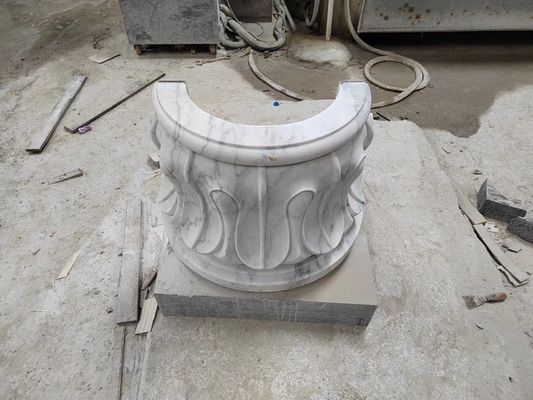

4 Axis Arc Slab Column Carving Machine For Marble Ganite Bulestone Jade Agate 0 4 Axis Arc Slab Column Carving Machine For Marble Ganite Bulestone Jade Agate 1 4 Axis Arc Slab Column Carving Machine For Marble Ganite Bulestone Jade Agate 2
Product Overview
Our CNC Stone Carving Machine is an advanced 4-Axis machine designed for granite engraving and stone cutting. With a weight of 1000kg, it is incredibly stable and precise, making it perfect for producing detailed and intricate designs. The machine is capable of handling a variety of stone materials, such as granite, marble, and quartz. The machine dimensions measure 4200*2410*3500mm, providing ample space for carrying out large-scale projects.
Applications
The XIANDA MACHINERY Carving machine is a CNC stone router with 3D engraving capabilities. It has 4-axis positioning accuracy of 0.02mm and repeatability accuracy of 0.02mm, and its worktable has a dimension of 3000*1500mm. It is suitable for engraving and cutting on sandstone, marble, granite, and other stones.
  • Reliable, durable, and easy to operate and maintain
  • Certified by API, CCC, SONCAP, GOST, ISO, CE, and SGS;IAF
  • Minimum order quantity: one set
  • Price negotiable
Ideal for stone cutting and engraving projects including decorative patterns on tombstones, engraving logos on marble slabs, and sculpting intricate art pieces on granite. Perfect for large-scale stone processing applications including milling, cutting, drilling, engraving, and polishing on natural stones, porcelain, and composite stones.
Customization Options
Brand Name: XIANDA MACHINERY
Model Number: ACM-2515-1Q/ACM-3015-2Q
Place of Origin: Jinjiang, Fujian, China
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Supply Ability: 1000 Sets/Year
Support and Services
We offer comprehensive technical support and service for our CNC Stone Carving Machine. Our team of skilled technicians and experienced engineers are available to provide troubleshooting, diagnose problems, and answer any technical questions you may have.
Services include installation, maintenance, repair, and parts replacement. We also provide training and advice on the best use of the machine and its features.
Packing and Shipping
The machine is packaged in a secure box with special cushioning material to protect from shock and vibration. The package includes:
  • Durable cardboard box resistant to moisture, dust and dirt
  • Instructions and user manuals in English
  • All necessary accessories (screws, nuts, bolts)
Shipped via reliable services (FedEx, UPS or DHL) with tracking information provided within 24 hours of shipment.
Frequently Asked Questions
Q1: What is the Brand Name of your CNC Stone Carving Machine?
A1: Our CNC Stone Carving Machine is branded XIANDA MACHINERY.
Q2: What is the Model Number of your CNC Stone Carving Machine?
A2: Our CNC Stone Carving Machine is model ACM-2515-1Q/ACM-3015-2Q.
Q3: Where is your CNC Stone Carving Machine produced?
A3: Our CNC Stone Carving Machine is produced in Jinjiang, Fujian, China.
Q4: What certifications does your CNC Stone Carving Machine have?
A4: Our CNC Stone Carving Machine is certified with API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF.
Q5: What is the minimum order quantity of your CNC Stone Carving Machine?
A5: The minimum order quantity of our CNC Stone Carving Machine is 1 SET.
