Dual Beam Bridge Type Cutting Milling Machine 3 Axis Cnc System

1set
MOQ
USD18000-22000/SET
Price
Dual Beam Bridge Type Cutting Milling Machine 3 Axis Cnc System
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: BLMM-1700MAX
Control: CNC
Use For: Cutting Profiling Lines,Column,Column Slab
Trademark: XIANDA MACHINERY
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Profiling Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Blade Diameter: 400-700mm
Max Processing Length: 3500mm
Trolley Size: 1700*3500mm
Main Motor: 18.5kw
Gross Power: 25.5kw
Ourline Dimension: 5900*3500*3700mm
Water Consumption: 4m3/h
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Operation Mode: Automatic
Power Source: Electric
Highlight:

Dual Beam Cnc Cutting Milling Machine

,

Cnc Bridge Cutting Milling Machine

,

3Axis Cnc Cutting Machine
Basic Infomation
Place of Origin: China
Brand Name: xianda machinery
Certification: ce
Model Number: BLMM-1700MAX
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Delivery Time: 15-30DAYS
Supply Ability: 1000 Sets Per Year
Product Description
Dual Beam Bridge Type Cutting Milling Machine 3 Axis CNC System
Product Attributes
Attribute Value
Model NO. BLMM-1700MAX
Control CNC
Use for Cutting Profiling Lines, Column, Column Slab
Trademark XIANDA MACHINERY
Origin Jinjiang, Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Type Profiling Cutting Machine
Usage Granite
Application Machinery & Hardware
Source Voltage 380V
Automation Automatic
Cutting Ability High Speed
Customization Available
Blade diameter 400-700mm
Max processing length 3500mm
Trolley size 1700*3500mm
Main motor 18.5kw
Gross power 25.5kw
Outline dimension 5900*3500*3700mm
Water consumption 4m3/h
Product Description

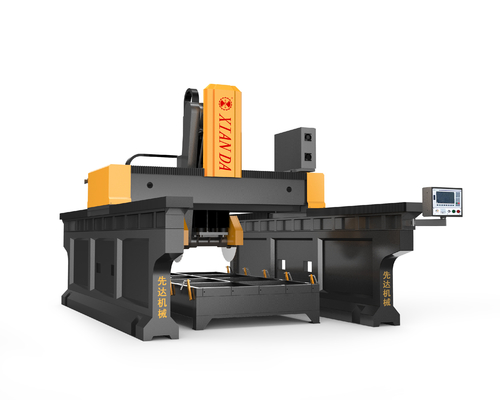

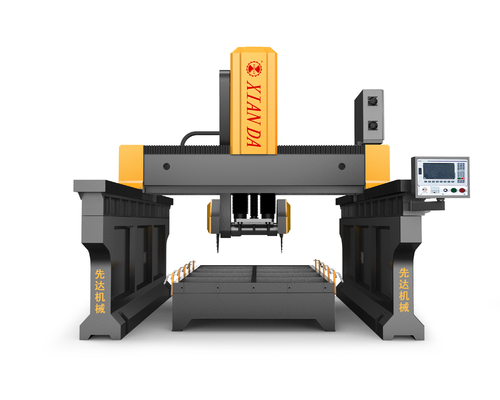

This machine adopts three-axis CNC system control with bridge double beam structure. The cutting head lifting structure uses four guide columns with sleeve copper, while left-right traveling utilizes four sets of side wheels and four sets of bottom wheels, combining the accuracy of linear guide rail with the power of profiling machine.

Key advantages include:

  • High stroke capability
  • Exceptional processing efficiency
  • Superior operational stability
  • Integrated functions including rough cutting, fine cutting, and fine milling
  • Ideal for large-scale special-shaped stone processing
Technical Parameters
Parameter Unit BLMM-1700MAX
Blade diameter mm 400-700
Max lifting travel of cutting frame mm 600
Trolley size mm 1700*3500
Max processing length mm 3500
Main motor kw 18.5
Gross power kw 25.5
Outline dimension mm 5900*3500*3700
Water consumption m³/h 4
Total weight kg ≈5500 (without concrete stand weight)
About Xianda Machinery

Fujian Xianda Machinery Co., Ltd is a leading manufacturer of stone cutting machines and tools in China, established in 1985. Our 20,000m³ facility is located in Jinjiang Wuli Industrial Area, near the historic Wuli Bridge and adjacent to the world's largest stone market in Shuitou.

With over 34 years of experience, we specialize in developing and producing:

  • Diamond wire saw machines
  • Column processing machines
  • Bridge cutting machines
  • Carving machines
  • Profiling linear machines
  • Baluster machines

We hold approximately 80% of China's market share for column processing machines and serve customers in over 30 countries worldwide. Our commitment to "Top Technology and Superior Quality" has earned us CE certification, ISO Quality Gold Award, and recognition as a "China Recommend Building Manufacture Enterprise."

Xianda Machinery maintains "Create the highest value of your stone" as our guiding principle. We welcome your inquiries and look forward to serving your stone processing needs.

Frequently Asked Questions
How to place an order with your company?

1. Inquiry - Receive professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales sends Proforma Invoice with seal
4. Customer makes deposit payment and sends bank receipt
5. Sales confirms receipt and arranges production

How is after-sales service provided?

Our engineers can be dispatched for machine assembly and support.

Are you a manufacturer?

Yes, we have been manufacturing stone machinery for over 30 years.

What is the warranty period?

We provide one year parts warranty service.

What can this machine be used for?

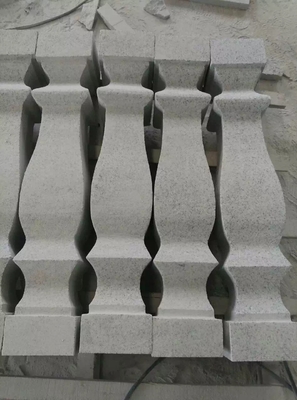

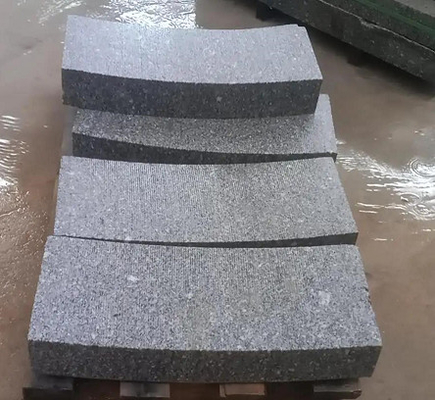

This machine is designed for cutting lines on stone columns, big arc-shaped slabs, and special stone shapes.
