5 Axis Bridge Cutting Machine With Permanent Magnetic Synchronous Motor

1 Set
MOQ
To Be Negotiated
Price
5 Axis Bridge Cutting Machine With Permanent Magnetic Synchronous Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Max Processing Size: 3400*2000*180mm
Main Motor: 15kw
Water Consumption: 3m³/H
Blade Diameter: 350-600mm
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Application: Machinery & Hardware
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Hs Code: 84641090
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Operation Mode: Automatic
Power Source: Electric
Highlight:

5Axis Bridge Cutting Machine

,

Synchronous Motor Bridge Cutting Machine

,

15kw Stone Profile Cutting Machine
Basic Infomation
Place of Origin: China
Brand Name: UNIQUE
Model Number: CREAT5
Payment & Shipping Terms
Supply Ability: 1000 Sets/Year
Product Description

UNIQUE Machinery 5 Axis Bridge Cutting Machine With Permanent Magnetic Synchronous Motor

Basic Info.

Model NO.
Create 5
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
API, CCC, SONCAP, GOST, ISO, CE
Max Processing Size
3400*2000*180mm
Dimension of Worktable
3400*2000mm
Main Motor
15kw
Outline Dimension
5800*3650*3850mm
Water Consumption
3m³/H
Advantage
Multi-Function,High Presicion,Strong Stability
Key Words
Stone Machine
Warranty Time
One Year
Blade Diameter
350-600mm
Transport Package
Plastic Package, Suitable for Sea Transportation
Specification
5800*3650*3850mm
Trademark
UNIQUE
Origin
Jinjiang, Fujian, China
HS Code
84641090
Production Capacity
1000 Sets/Year

Product Description

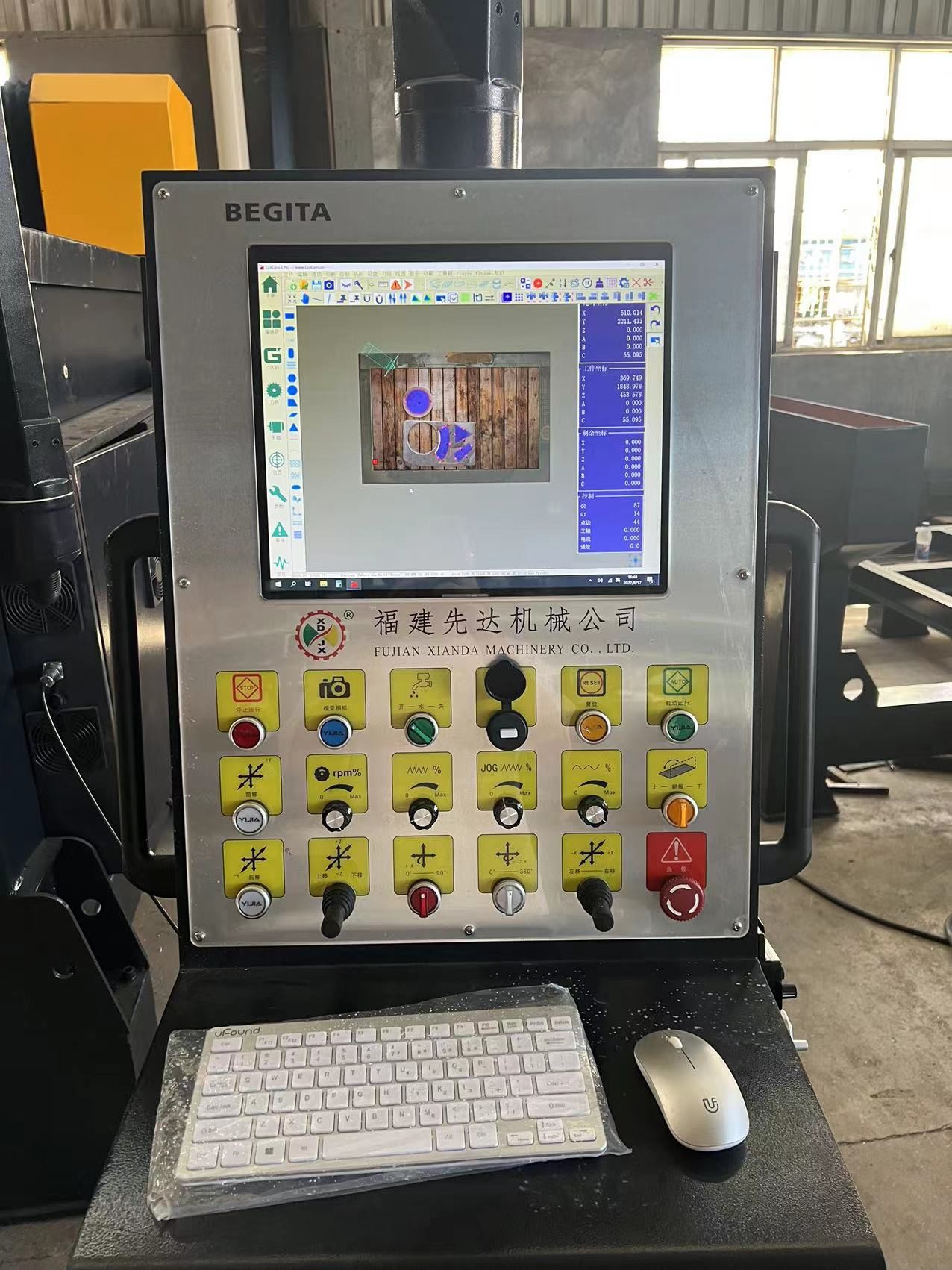

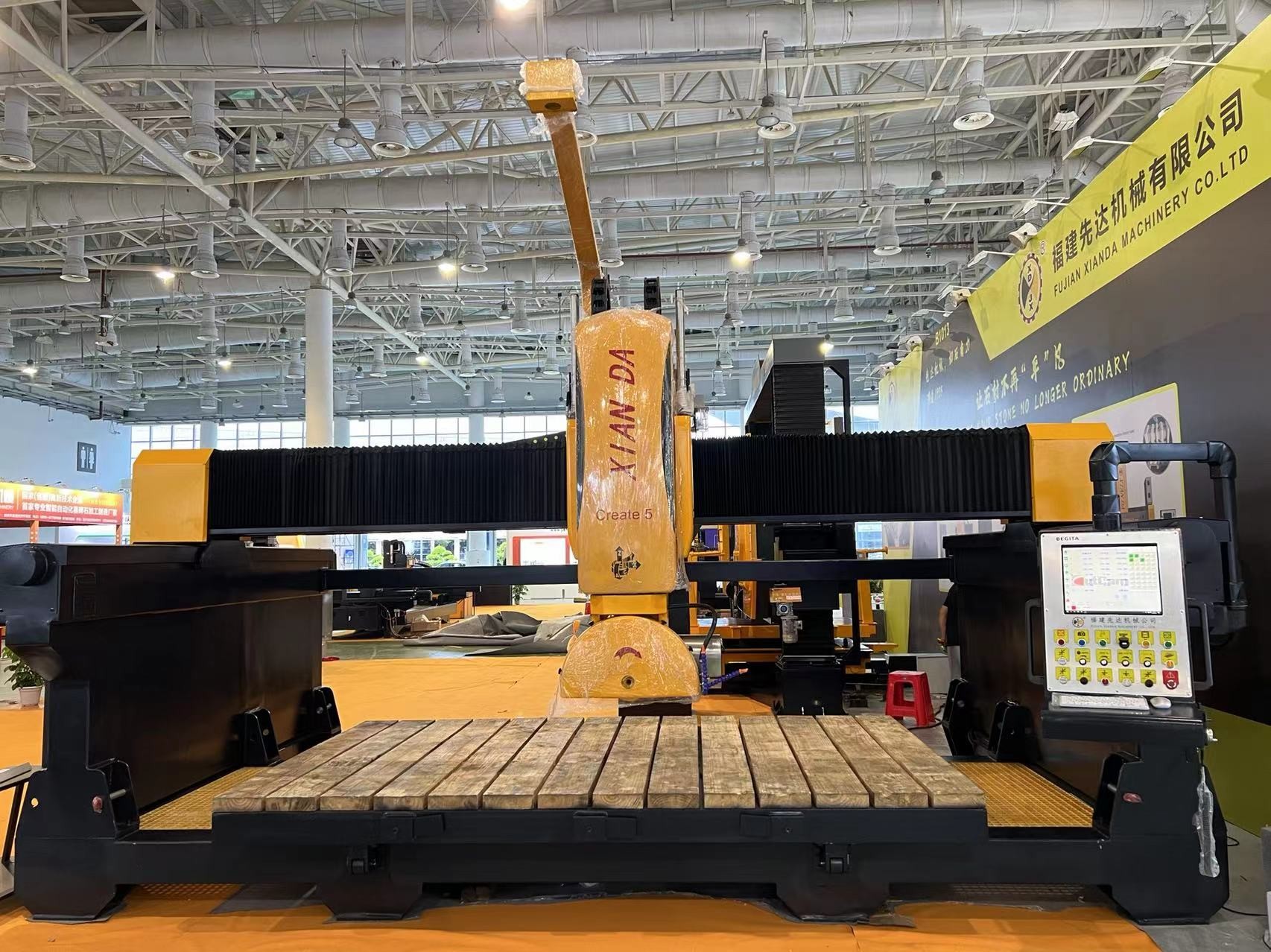

5 Axis Bridge Cutting Machine With Permanent Magnetic Synchronous Motor 0


5 Axis Bridge Cutting Machine With Permanent Magnetic Synchronous Motor 1
Product Description
5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control,Bus-based absolute value servo (with memory function for power off).high-precision linear guide rail,ball screw transmission.oil-immersed track structure.with multi-function, high precision,strong stability and other advantages.Its processing functions include arbitrary-shaped lines,fan-shaped plates, wash basin and special-shaped edge profiling,etc.The equipment has multiple processing functions,wide application, small space, and simple operation.It is a great equipment for stone processing.


Technical Parameter

Parameter Unit Create 5
Blade diameter mm 350-600
Max processing size mm 3400*2000*180
Worktable size mm 3400*2000
Table tilting degree mm 3200*2000*80
Head rotating degree ° 0-85
Head tilting degree ° 0-360
Air speed ° 0-45
Repeated accuracy of positioning
Main motor power kw 15
Outline dimension mm 5000*3100*2600
Water consumption m3/h 3


Certification

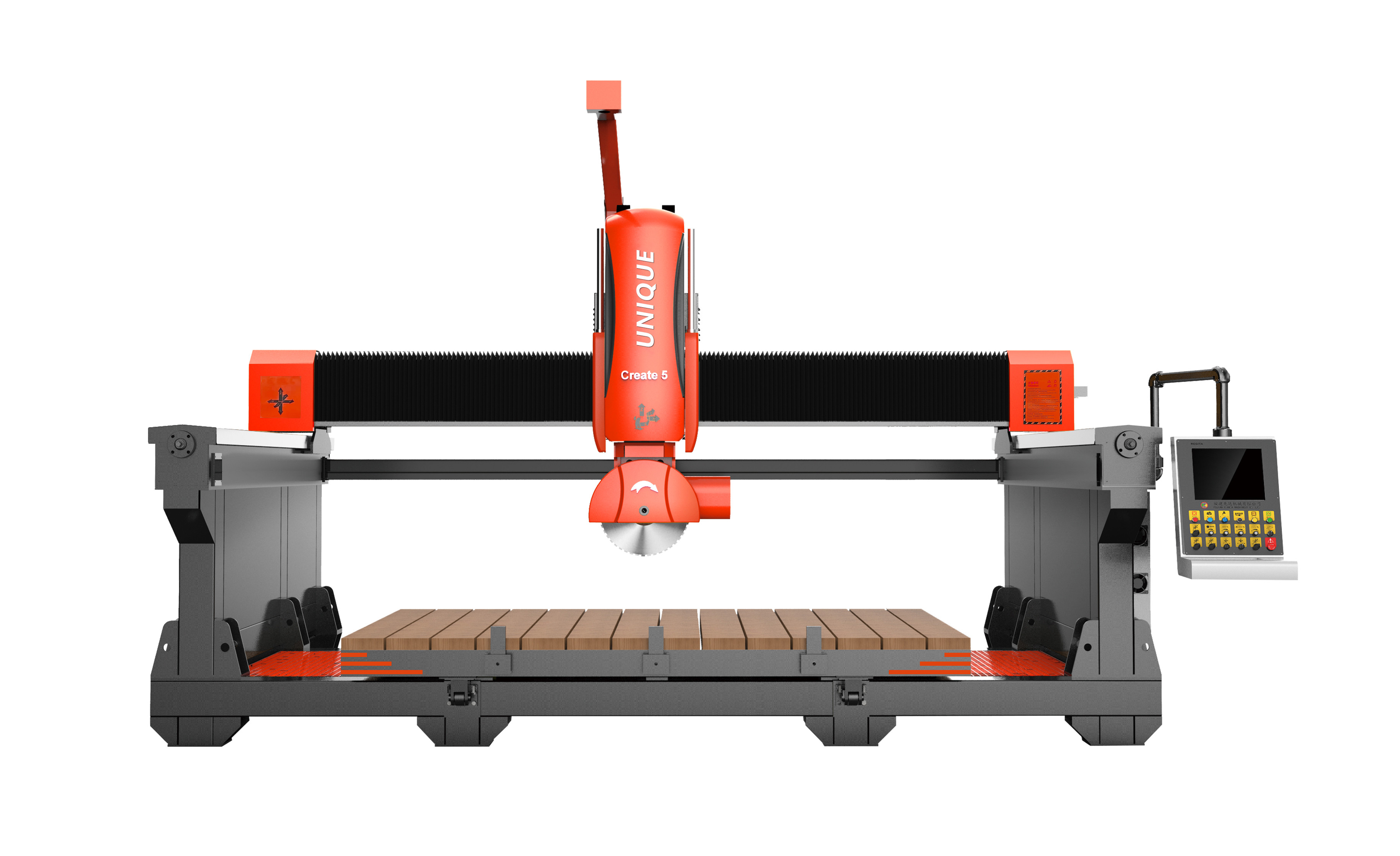

5 Axis Bridge Cutting Machine With Permanent Magnetic Synchronous Motor 2
Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

Key words: stone cutting machine, wire saw machine, stone profiling.

Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.

Quality Control

We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.

Delivery time

Based on order quantity, normally three weeks against payment.

Warranty

All the machines have one year warranty.

After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.

FAQ

Q:How to place order to your company?
A: 1.Inquiry-Professional quotation
2.Confirm the price,lead time, logo, payment term etc.
3.UNIQUE sales send the Proforma Invoice with seal.
4.Customers make the payment as a deposit and send us Bank receipt
5.Sales confirm the receipt of down payment After approval, we will arrange the production & inform the estimated time

Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery

Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years

Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service

Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines ,big arc shaped slabs and special stone shapes.
