Reinforced Concrerte Diamond Wire Cutting Rope 11.5mm Line Speed 20-22m/S

50m
MOQ
US $25-35/Meter
Price
Reinforced Concrerte Diamond Wire Cutting Rope 11.5mm Line Speed 20-22m/S
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Diamond Wire Saw
Application: Cutting,Reinforced Concrerte
Material: Diamond,steel,Diamond Wire Saw,rubber
Usage: Reinforced Concrerte,Rock Cutting,Stone Carving,diamond Wire Saw
Product Name: 11.5mm Fast Cutting Rope Reinforced Concrerte Diamond Wire Saw,Small Diameter Diamond Wire Saw For Stone Cutting,Diamond Saw Ropes
Advantage: High Efficiency Long Life Time,High Working Efficiency,high Quality,Fast Cutting,15 Years Experience
Beads Type: Sintered
Diameter: 11.5mm
Business Type: Manufacturer,Manufacturer And Trading
High Light:

Unique Diamond Wire Cutting Rope 20m s

,

11.5mm diamond wire saw for concrete

,

Diamond Wire Cutting Rope 22m s

Basic Infomation
Place of Origin: China
Brand Name: Unique
Model Number: CCR115
Payment & Shipping Terms
Packaging Details: 50cm*50cm*30cm
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000m/day
Product Description

Diamond Wire Saw For Reinforced Concrerte Tools To Cutting Stone 11.5mm

Basic Info.

Model NO.
Diamond Wire Saw  For Reinforced Concrerte
Service
ODM, OEM, Customized
Beads Number
40 Beads Per Meter
Business Type
Manufacturer
Keywords
/Stone/Concrete Cutting /Diamond Wire
Grade
a-Grade
Usage
Used on Electric Wire Saw Machine
Shipping
by Air, by Sea,by Express(DHL,FedEx,EMS)
Beads Type
Sintered, Electroplated, Brazed
Transport Package
Sealed and Waterproof Plastic Box Packaging
Specification
D11.5mm
Trademark
UNIQUE
Origin
China
Production Capacity
1000meters/Day

Product Description

Diamond wire saw for reinforced concrerte

The characteristics:

1: The diamond wire  technique can highly improve the cutting efficiency, reduce the waste of mining resource,
2: It can exploit large dimension blocks. At the same time, it can be operated safely and it is good for environment protection.
3: Independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.
4. The rubber and cable sticking together tightly makes good bonding, and this can be more strikes during the work.
5. The vulcanised rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry.
6. Strong flexibility can reduce the cut-in-one-side problem, and protect cable well when it used for small curvature radius(beginning and end of quarry cuts).

Specification Reinforcement Beads number Cutting material Line speed Cutting speed Wire life
Φ11.5mm Rubber 40/m Normal reinforced concrerte 22-25m/s 2.0-3.0 m2/h 3.0-6.0m2/m
Φ11.5mm Rubber 40/m Strong reinforced concrerte 20-22m/s 0.8-2.0 m2/h 1.0-2.8m2/m
Φ11.5mm Rubber 40/m Steel structure 18-20m/s 0.6-1.2m2/h 0.5-1.3m2/m

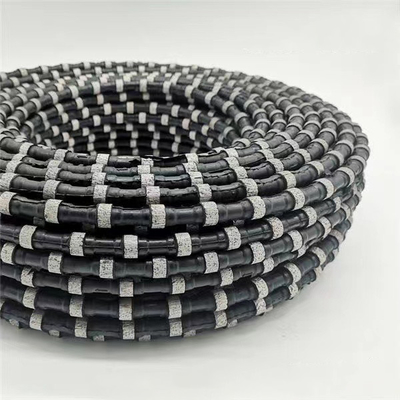

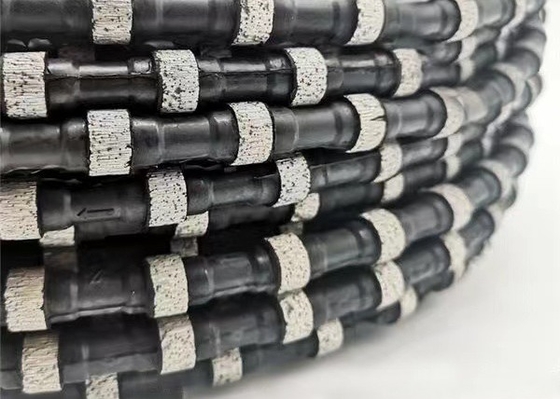

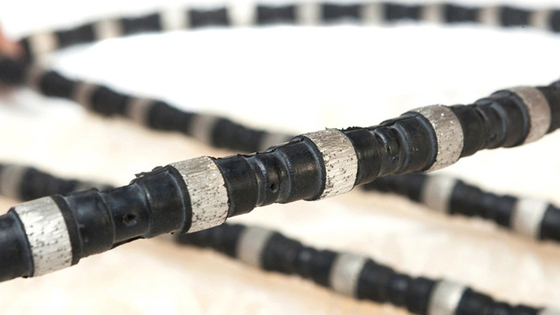

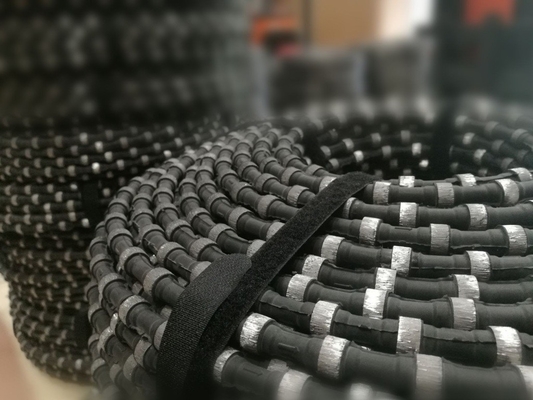

Reinforced Concrerte Diamond Wire Cutting Rope 11.5mm Line Speed 20-22m/S 0

Reinforced Concrerte Diamond Wire Cutting Rope 11.5mm Line Speed 20-22m/S 1
