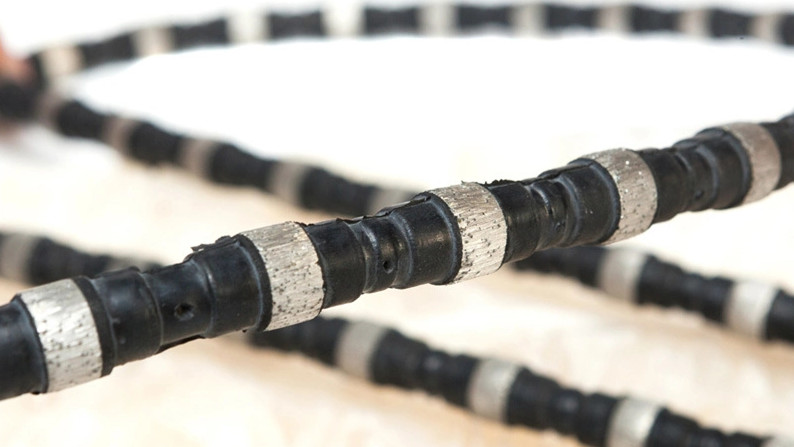

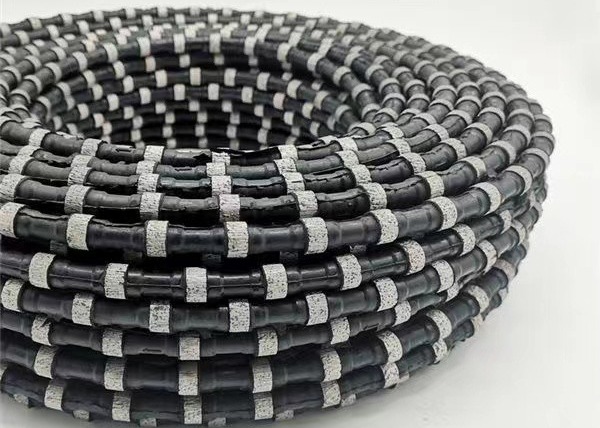

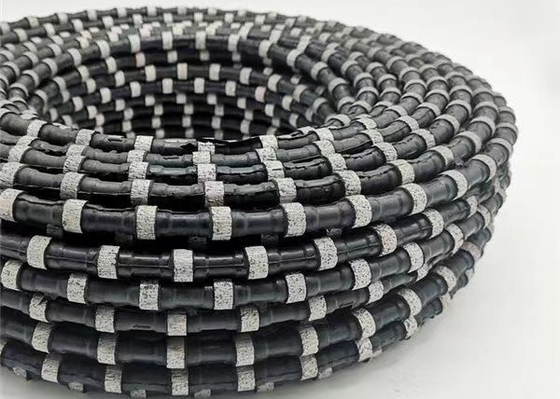

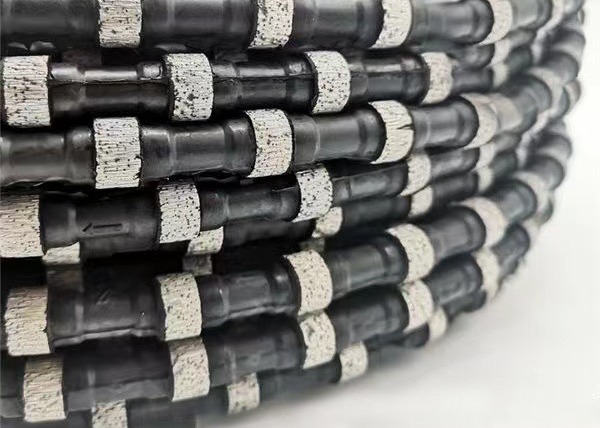

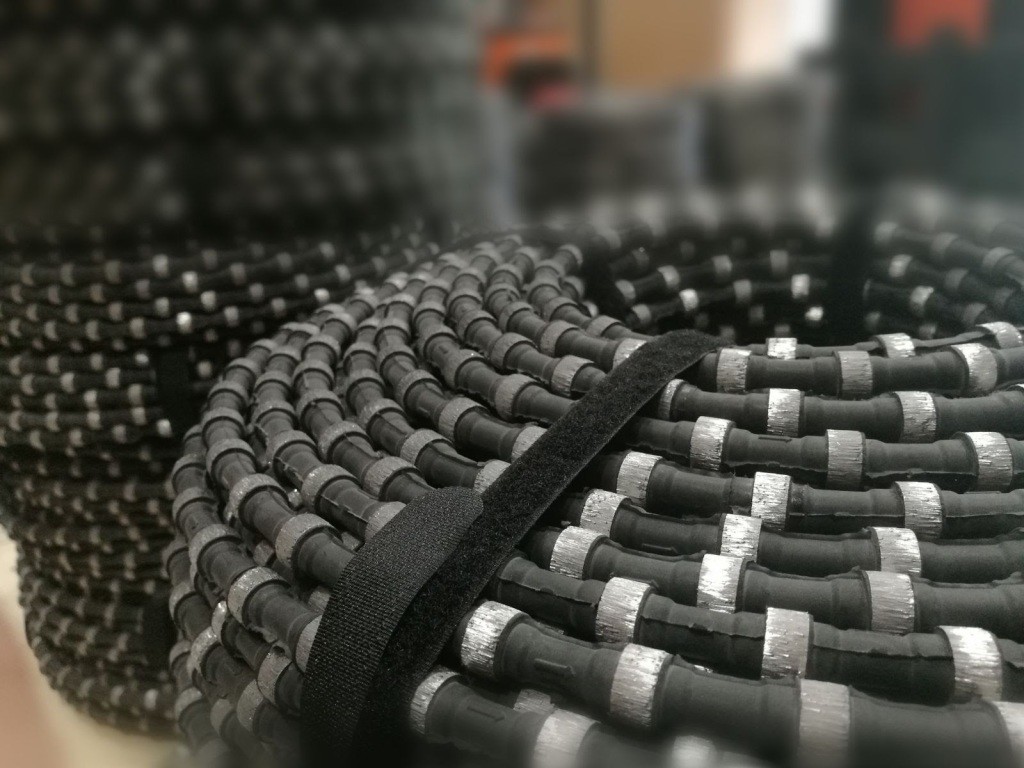

Marble Quarrying Tools Diamond Wire Saw Rope To Cutting Stone 11.5mm

1
MOQ
To Be Negotiable
Price
Marble Quarrying Tools Diamond Wire Saw Rope To Cutting Stone 11.5mm
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Diamond Wire Saw
Application: Cutting,Marble Quarrying
Material: Diamond,steel,Diamond Wire Saw,rubber/Spring
Usage: Marble Quarrying,Rock Cutting,Stone Carving,diamond Wire Saw
Product Name: 11.5mm Fast Cutting Rope Quarry Diamond Wire Saw,Small Diameter Diamond Wire Saw For Stone Cutting,Diamond Saw Ropes
Advantage: High Efficiency Long Life Time,High Working Efficiency,high Quality,Fast Cutting,15 Years Experience
Beads Type: Sintered
Diameter: 11.5mm
Business Type: Manufacturer,Manufacturer And Trading
Highlight:

Diamond Wire Saw Rope 11.5mm

,

diamond wire hand saw 11.5mm

,

Sintered Diamond Wire Saw Rope
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Model Number: MQR115
Payment & Shipping Terms
Packaging Details: 50cm*50cm*30cm
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets/Year
Product Description
Marble Quarrying Tools Diamond Wire Saw Rope To Cutting Stone 11.5mm
Product Attributes
Attribute Value
Type diamond wire saw
Application Cutting, Marble Quarrying
Material Diamond, steel, Diamond wire saw, rubber/Spring
Usage Marble Quarrying, Rock cutting, Stone Carving, diamond wire saw
Product name 11.5mm fast cutting rope quarry diamond wire saw, Small diameter Diamond wire saw for stone cutting, Diamond saw ropes
Advantage High Efficiency Long Life Time, High working efficiency, high quality, Fast Cutting, 15 years experience
Beads type Sintered
Diameter 11.5mm
Business type Manufacturer, Manufacturer and Trading
Basic Information
Model NO. Diamond Wire Saw For Marble Quarrying
Service ODM, OEM, Customized
Beads Number 40 Beads Per Meter
Business Type Manufacturer
Keywords Marble /Quarring/Stone/Concrete Cutting Diamond Wire
Grade a-Grade
Usage Used on Electric Wire Saw Machine
Shipping by Air, by Sea, by Express(DHL,FedEx,EMS)
Beads Type Sintered, Electroplated, Brazed
Transport Package Sealed and Waterproof Plastic Box Packaging
Specification D11.5mm
Trademark UNIQUE
Origin China
Production Capacity 1000meters/Day
Diamond Wire Saw for Marble Quarrying
Characteristics:
  • The diamond wire quarrying technique can highly improve the quarrying efficiency, reduce the waste of mining resource
  • It can exploit large dimension blocks. At the same time, it can be operated safely and it is good for environment protection
  • Independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment
  • The rubber and cable sticking together tightly makes good bonding, and this can be more strikes during the work
  • The vulcanised rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry
  • Strong flexibility can reduce the cut-in-one-side problem, and protect cable well when it used for small curvature radius (beginning and end of quarry cuts)
Specifications:
Specification Reinforcement Beads number Cutting material Line speed Cutting speed Wire life
Φ11.5mm Rubber+Spring 40/m Hard marble 20-30m/s 8-12 m²/h 30-40m²/m
Φ11.5mm Rubber+Spring 40/m Middle hard marble 20-35m/s 12-15 m²/h 40-50m²/m
Φ11.5mm Rubber+Spring 40/m Soft marble 25-35m/s 15-20 m²/h 50-70m²/m
