Model NO.:
SDNFX-1800 SCNFX-1800
Automation:
Automatic
Cutting Ability:
High Speed
Control:
PLC/CNC
Blade Diamension:
Φ350-600mm
Max Lifting Travel Of Cutting Frame:
850mm
Trolley Size:
1800*3500mm
Main Motor:
18.5kw
Gross Power:
23.5kw
Outline Dimension:
6000*3600*3100mm
Water Consumption:
6m3/H
Gross Weight:
6000kg
Use For:

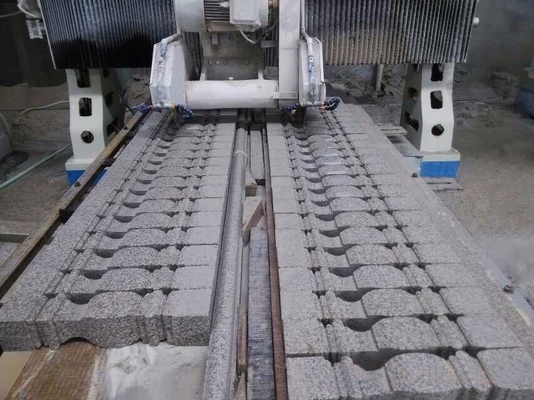

Profiling Linear From The Thinner Stone Block
Blade Qty:
Two
Transport Package:
Plastic Package, Suitable For Sea Transportation
Specification:
6000*3600*3100mm
Trademark:
UNIQUE
Origin:
Jinjiang, Fujian, China
HS Code:
84641090
Supply Ability:
1000 Sets/Year
After-sales Service:
One Year For Spare Part
Warranty:
One Year
Type:
Profiling Cutting Machine
Usage:
Granite
Application:
Machinery & Hardware
Source Voltage:
380V
Customization:
Available | Customized Request
Trolley Size:
1300*3000mm/1400*3500mm
Cutting Method:
Laser
Cutting Accuracy:
High
Model No:
LCMM-1300/1800
Max Cutting Diameter:
2500mm
Usage:
Cutting
Maintenance:
Easy
Safety Protection:
High
Max Cutting Height:
1150mm
Blade Diameter Range:
400-600mm
Max Cutting Depth:
150mm
Operation Mode:
Automatic
Power Source:
Electric
Highlight:

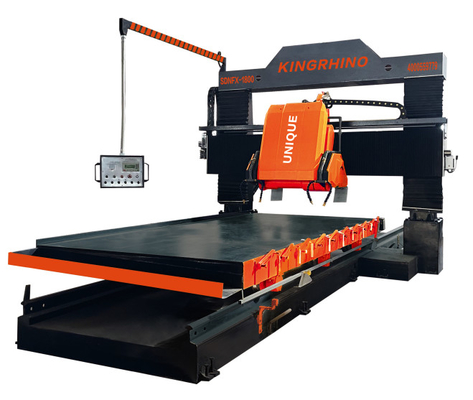

850mm Stone Profile Cutting Machine
, Double Blades stone block making machine
, Lift Type Stone Profile Cutting Machine
