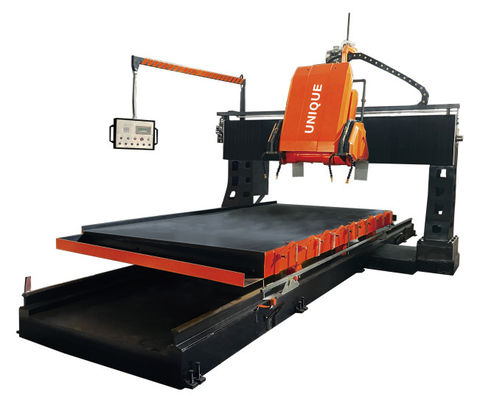

PLC CNC Gantry Type Linear Stone Profile Cutting Machine Two Blade

1
MOQ
To Be Negotiable
Price
PLC CNC Gantry Type Linear Stone Profile Cutting Machine Two Blade
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: DNFX-1800/CNFX-1800
Automation: Automatic
Cutting Ability: High Speed
Control: PLC/CNC
Blade Diamension: Φ400-600mm
Max Lifting Travel Of Cutting Frame: 250mm
Trolley Size: 1800*3500mm
Main Motor: 18.5kw
Gross Motor: 22kw
Outline Dimension: 6000*3600*2500mm
Water Consumption: 6m3/H
Gross Weight: 5000kg
Use For: Profiling Linear From The Thinner Stone Block
Blade Qty: Two
Transport Package: Plastic Package, Suitable For Sea Transportation
Specification: 6600*3600*2500mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
After-sales Service: One Year For Spare Part
Warranty: One Year
Type: Profiling Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Customization: Available | Customized Request
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Operation Mode: Automatic
Power Source: Electric
Highlight:

Stone Profile Cutting Machine Two Blade

,

250mm stone edge profiling router machine

,

PLC CNC Stone Profile Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API
Model Number: DNFX-1800/CNFX-1800
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/Year
Product Description
PLC CNC Gantry Type Linear Stone Profile Cutting Machine Two Blade
Product Specifications
Attribute Value
Model NO. DNFX-1800/CNFX-1800
Automation Automatic
Cutting Ability High Speed
Control PLC/CNC
Blade Diameter Φ400-600mm
Max Lifting Travel of Cutting Frame 250mm
Trolley Size 1800*3500mm
Main Motor 18.5kw
Gross Motor 22kw
Outline Dimension 6000*3600*2500mm
Water Consumption 6m3/H
Gross Weight 5000kg
Use for Profiling Linear From The Thinner Stone Block
Blade Quantity Two
Transport Package Plastic Package, Suitable for Sea Transportation
Specification 6600*3600*2500mm
Trademark UNIQUE
Origin Jinjiang, Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
After-sales Service One Year for Spare Part
Warranty One Year
Type Profiling Cutting Machine
Usage Granite
Application Machinery & Hardware
Source Voltage 380V
Customization Available
Technical Parameters
Parameter Unit DNFX-1800 CNFX-1800
Blade Diameter mm φ400-φ600 φ400-φ600
Max Lifting Travel of Cutting Frame mm 250 250
Trolley Size mm 1800*3500 1800*3500
Main Motor kw 18.5 18.5
Gross Power kw 22 22
Outline Dimension mm 6000*3600*2500 6000*3600*2500
Gross Weight kg 5000 5000
Water Consumption m³/h 6 6
Product Description

The PLC/CNC Gantry Type Linear Thinner Stone block Profiling Machine DNFX-1800/CNFX-1800 features double blades and a gantry structure for enhanced cutting stability. It is specifically designed for profiling linear shapes from thinner stone blocks, with a fixed up and down travel mechanism.

Our Service
We provide machine testing videos and conduct strict inspections for every machine before shipping.
24-hour online after-sales service with staff training to continuously improve service quality.
Professional technical personnel available for machine installation, commissioning, and operator training.
Product Images

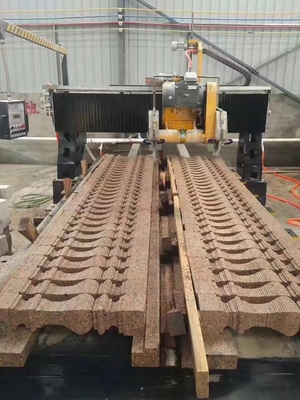

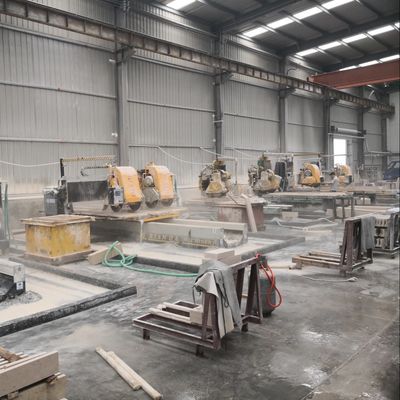

PLC/CNC Two Blade Gantry Type Linear Profiling Machine certification PLC/CNC Two Blade Gantry Type Linear Profiling Machine shipping PLC/CNC Two Blade Gantry Type Linear Profiling Machine operation
Frequently Asked Questions
Q: How to place order to your company?

A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. UNIQUE send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment. After approval, we will arrange the production & inform the estimated time.

Q: How is After-sales Service Provided?

A: Engineer can dispatch for assembly machinery.

Q: Are you Manufacture Factory?

A: Yes, we are the stone machinery factory with over 30 years of experience.
