PLC CNC Gantry Type Linear Thinner Stone Profile Cutting Machine 600mm

1
MOQ
To Be Negotiable
Price
PLC CNC Gantry Type Linear Thinner Stone Profile Cutting Machine 600mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: DNFX-1800/CNFX-1800
Automation: Automatic
Cutting Ability: High Speed
Control: PLC/CNC
Blade Diamension: Φ400-600mm
Max Lifting Travel Of Cutting Frame: 250mm
Trolley Size: 1800*3500mm
Main Motor: 18.5kw
Gross Motor: 22kw
Outline Dimension: 6000*3600*2500mm
Water Consumption: 6m3/H
Gross Weight: 5000kg
Use For: Profiling Linear From The Thinner Stone Block
Blade Qty: Two
Transport Package: Plastic Package, Suitable For Sea Transportation
Specification: 6600*3600*2500mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
After-sales Service: One Year For Spare Part
Warranty: One Year
Type: Profiling Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Customization: Available | Customized Request
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Operation Mode: Automatic
Power Source: Electric
Highlight:

Thinner Stone Profile Cutting Machine

,

stone block machine 600mm

,

Gantry Type Stone Profile Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API
Model Number: DNFX-1800/CNFX-1800
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/Year
Product Description
PLC CNC Gantry Type Linear Thinner Stone Profile Cutting Machine 600mm
Product Specifications
Attribute Value
Model NO. DNFX-1800/CNFX-1800
Automation Automatic
Cutting Ability High Speed
Control PLC/CNC
Blade Diamension Φ400-600mm
Max Lifting Travel of Cutting Frame 250mm
Trolley Size 1800*3500mm
Main Motor 18.5kw
Gross Motor 22kw
Outline Dimension 6000*3600*2500mm
Water Consumption 6m3/H
Gross Weight 5000kg
Use for Profiling Linear From The Thinner Stone Block
Blade Qty Two
Transport Package Plastic Package, Suitable for Sea Transportation
Specification 6600*3600*2500mm
Trademark UNIQUE
Origin Jinjiang, Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
After-sales Service One Year for Spare Part
Warranty One Year
Type Profiling Cutting Machine
Usage Granite
Application Machinery & Hardware
Source Voltage 380V
Customization Available
Product Description

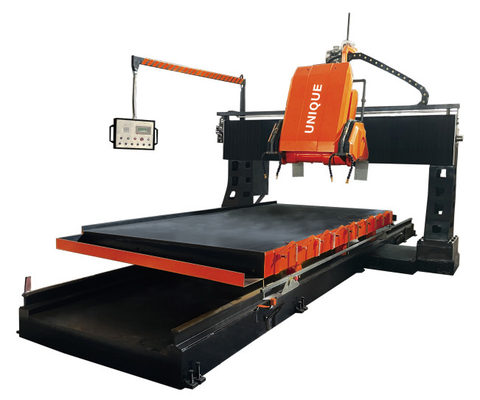

PLC/CNC Gantry Type Linear Thinner Stone block Profiling Machine DNFX-1800/CNFX-1800

This machine features double blades with a gantry structure for more stable cutting. It's specifically designed for profiling linear from thinner stone blocks, with fixed up and down travel.

Technical Parameters
Parameter Unit DNFX-1800 CNFX-1800
Blade Diameter mm φ400-φ600 φ400-φ600
Max Lifting Travel of Cutting Frame mm 250 250
Trolley Size mm 1800*3500 1800*3500
Main Motor kw 18.5 18.5
Gross Power kw 22 22
Outline Dimension mm 6000*3600*2500 6000*3600*2500
Gross Weight kg 5000 5000
Water Consumption m³/h 6 6
Certifications
PLC CNC Gantry Type Linear Thinner Stone Profile Cutting Machine 600mm 0
Our Service
We provide machine testing videos and conduct strict inspections and testing for every machine before shipping.
24-hour online after-sales service. We provide staff training to continuously improve service quality.
Professional technical personnel available for machine installation, commissioning, and operator training.
Shipping
PLC CNC Gantry Type Linear Thinner Stone Profile Cutting Machine 600mm 1 PLC CNC Gantry Type Linear Thinner Stone Profile Cutting Machine 600mm 2
Frequently Asked Questions
Q: How to place order to your company?
A:
1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. UNIQUE sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment. After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacture Factory?
A: Yes, we are the stone machinery factory with over 30 years of experience.
