Four Cylinder Gantry Stone Column Cutting Machine For Column Slab

1set
MOQ
To Be Negotiated
Price
Four Cylinder Gantry Stone Column Cutting Machine For Column Slab
Features Gallery Product Description Request A Quote
Features
Specifications
Supply Ability: 1000 Sets/Year
Model NO.: YHQJ-2500
Automation: Automatic
Cutting Ability: High Speed
Control: CNC
Max Diameter Of Cylinder: 2500
Max Vertical Lifting Travel: 1500
Max Worktable Travel: 3000
Main Motor: 22/30kw
Gross Power: 26.5/34.5kw
Outline Dimension: 3800*6300*4850
Gross Weight: 8000kg
Water Consumption: 8m3/H
Advantage: Multi Function With Good Quality And Price
Key Words: Stone Machine
Transport Package: Plastic Package, Suitable For Sea Transportation
Specification: 3800*6300*4850mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
After-sales Service: One Year For Spare Part
Warranty: One Year
Type: CNC Cutting Machine
Usage: Concrete Curb
Application: Machinery & Hardware
Source Voltage: 380V
Customization: Available | Customized Request
High Light:

Gantry Stone Column Cutting Machine

,

concrete curb cutter 2500mm

,

Four Cylinder Column Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API
Model Number: YHQJ-2500
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Product Description

Product Description

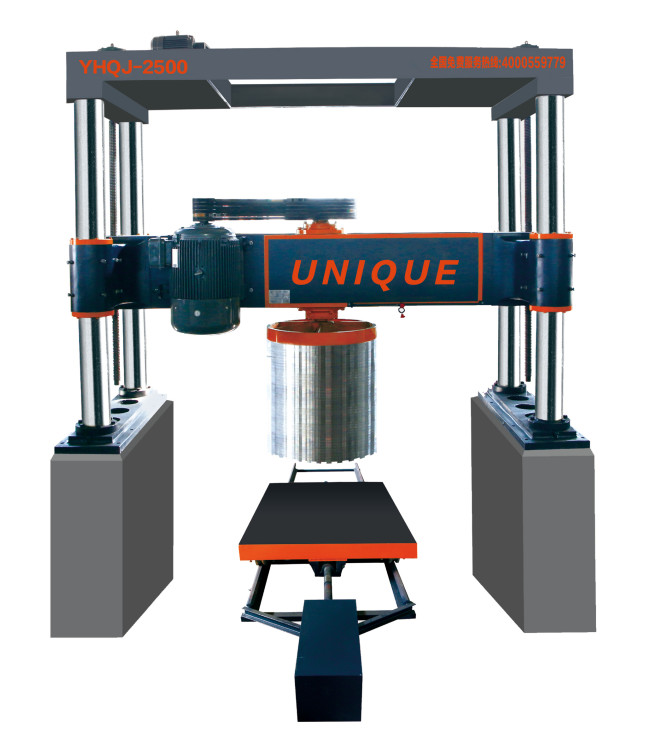

Four-cylinder Gantry Stone Cutting Machine For Column Slab YHQJ-2500

Product Description
YHQJ-2500, This machine has motorized vertical feeding and automatic slicing to fulfil cycle cutting ,It's suittable for cutting block to granite slabs.

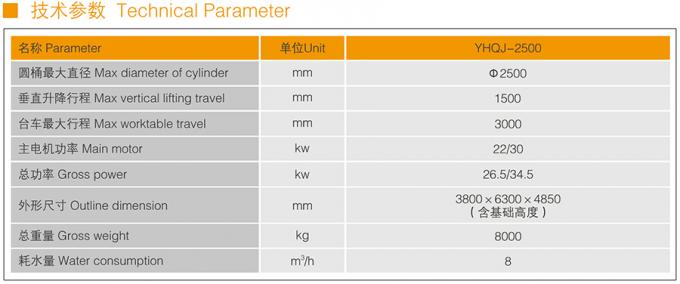

Technical Parameter
Xianda Four-Cylinder Gantry Stone Cutting Machine for Column Slab Yhqj-2500
Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.

If you have any problem,just conact our sales department,customer service department,etc at any time.

Key words: stone cutting machine, wire saw machine, stone profiling.
