Home /Products/Stone Slab Polishing Machine/Stone Processing Arc Slab Polishing Machine 350mm To 2000mm

Stone Processing Arc Slab Polishing Machine 350mm To 2000mm

1set
MOQ
US $27,500-30,000 / Set
Price
Stone Processing Arc Slab Polishing Machine 350mm To 2000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Arc Slab Polishing Machine
Max Cutting Width: 1300mm
Outline Dimension: 5200*1700*2900mm
Column Of Diameter: Φ350mm-Φ2000mm
Gross Motor: 27.5kw
Specification: 5200*1700*2900mm
Highlight:

Arc Slab Polishing Machine 350mm

,

1300mm granite slab polishing machine

,

Slab Polishing Machine 2000mm
Basic Infomation
Place of Origin: China
Brand Name: UNIQUE
Certification: API, CCC, UL, SONCAP, GOST, ISO, CE
Model Number: APM-350-2000-10
Payment & Shipping Terms
Packaging Details: 5200*1700*2900mm
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets/Year
Product Description

Apm-350-2000-10 for Stone Processing Arc Slab Polishing Machine

Basic Info.

Model NO.
APM-350-2000-10
Control
PLC
Certification
API, CCC, UL, SONCAP, GOST, ISO, CE
Column of Diameter
Φ350mm-Φ2000mm
Max Cutting Width
1300mm
Outline Dimension
5200*1700*2900mm
Grinding Number
10
Gross Motor
27.5kw
Efficiency
≈7 Min/M2
Water Consumption
6m3/H
Gross Weight
5000kg
Color
White,Blue
Transport Package
Load in a 20 Feet Container
Specification
5200*1700*2900mm
Trademark
UNIQUE
Origin
Jinjiang, Fujian, China
HS Code
84641090
Production Capacity
1000 Sets/Year

Product Description

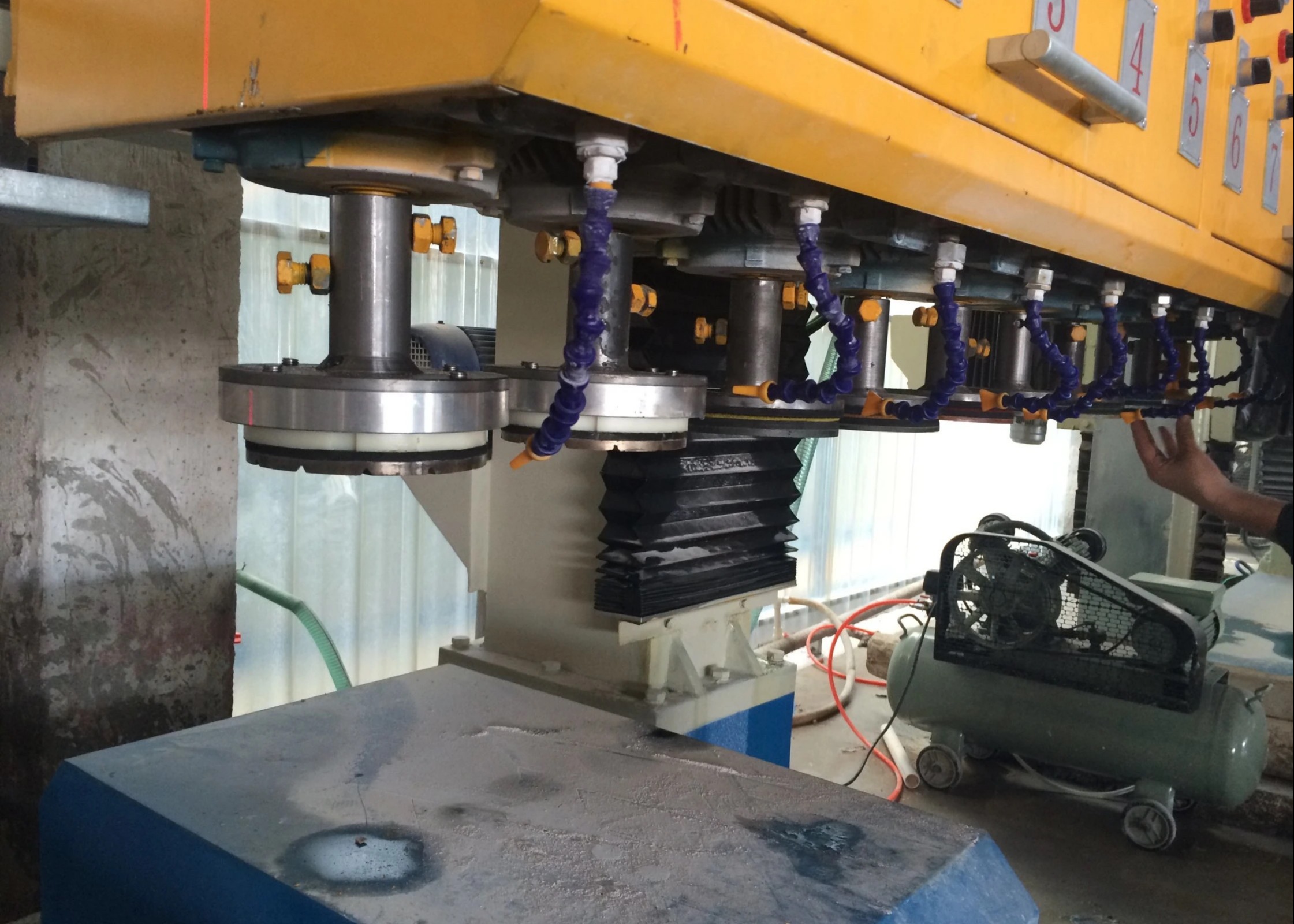

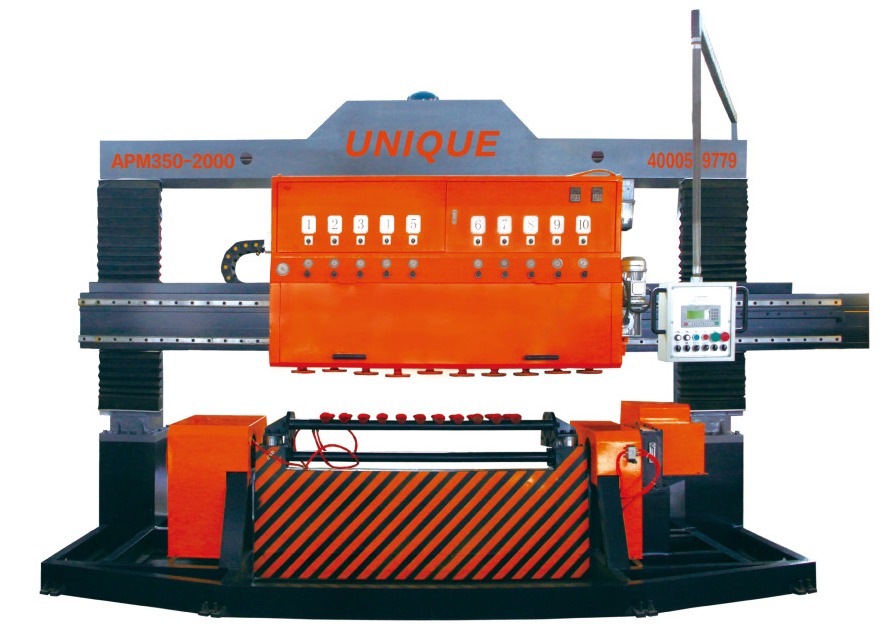

APM350-2000,Arc Slab Polishing Machine fix the arc slab by vacuum sucker, replaced conventional clamping fixing on both sides, solved the deviation of the squareness andXianda APM-350-2000 Natural Stone Circular Slab Polishing Machine inclination which were generated by the steps trimming-grinding, at the meanwhile, clear the customer's concerns about arc slab edge&angle damage. Machine adopt linear guides, multi grinding head and PLC system. it has a high-precision, high efficiency, easy operation and others, it is the ideal equipment for arc slab polishing.

This machine is better than fix by gripping two sides.And solve the problem which caused verticality and inclination mistake after trimming.It won't broke the edge of column slabs.


Technical Parameter
Parameter Unit APM-350-2000-10
Processing diameter mm 350-2000
Processing length mm 1300
Grinding number piece 10
Gross motor kw 27.5
Efficiency min/M2 ≈7
Outline dimension mm 5200*1700*2900
Water consumption m³/h 6
Gross weight kg 5000


Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
