CNC Marble/Granite Diamond Wire Saw For Profiling

1
MOQ
To Be Negotiable
Price
CNC Marble/Granite Diamond Wire Saw For Profiling
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Diamond Wire Saw Machine
Application: Cutting, Marble Block Quarrying Dressing
Material: Casting
Use: Rock Cutting,Stone Carving,diamond Wire Saw,block Dressing,marble Dressing,block Quarrying
Wheel Diameter: 1600mm
Advantage: High Efficiency Long Life Time,High Working Efficiency,high Quality,Fast Cutting,15 Years Experience
Max Processing Size: 2000mm/2500mm/3000mm*3000mm*1500mm
Wire Speed: 0-40m/s
Main Motor: 11kw
Highlight:

11mm Marble Diamond Wire Saw

,

11mm diamond wire saw Unique

,

Cutting Stone Marble Diamond Wire Saw
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CE
Model Number: CNC-2000/2500/3000
Payment & Shipping Terms
Packaging Details: Plastic
Delivery Time: 30
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets/Year
Product Description
CNC Marble/Granite Diamond Wire Saw For Profiling
Key Attributes
Attribute Value
Type Diamond wire saw machine
Application Cutting, Marble block quarrying dressing
Material Casting
Use Rock cutting, Stone Carving, diamond wire saw, block dressing, marble dressing, block quarrying
Wheel diameter 1600mm
Advantage High Efficiency, Long Life Time, High working efficiency, high quality, Fast Cutting, 15 years experience
Max processing size 2000mm/2500mm/3000mm × 3000mm × 1500mm
Wire speed 0-40m/s
Main motor 11kw
Basic Information
Model NO. CNC-2000/2500/3000
Service ODM, OEM, Customized
Control System Begita
Business Type Manufacturer
Keywords Stone / Marble profiling / Diamond Wire machine / cutting
Grade a-Grade
Beaded rope diameter ф6.5mm-ф11mm
Shipping By Sea
Cutting accuracy ±0.1mm
Transport Package Sealed and Waterproof Plastic Box Packaging
Specification 2000mm × 3000mm × 1500mm
Trademark Xianda
Origin China
Production Capacity 1000/year
Diamond Wire Saw Machine for Marble/Granite Profiling

This machine adopts CNC control with four-spindle linkage, capable of processing circular stone slabs, columns, numerals, letters, Chinese characters, and various other shapes for stone applications. Designed for superior quality and high processing precision.

Product Features
  • High cutting efficiency for optimal productivity
  • Produces even and smooth slabs with precision
  • Low powder consumption with minimal raw material waste
  • Safe and eco-friendly operation with low noise levels
  • Easy to operate with low maintenance costs
Technical Specifications
Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size mm 2000×3000×1500 2500×3000×1500 3000×3000×1500
Wheel diameter mm 1600 1600 1600
Trolley size mm 1300×2500 1300×2500 1300×2500
Table bearing weight T 15 15 15
Main motor kw 11 11 11
Wire speed m/s 0-40 0-40 0-40
Outline dimension mm 6800×6300×3800 7800×6300×3800 8800×6300×3800
Gross weight kg 5500 5750 6000
Water consumption m³/h 4 4 4
Product Images

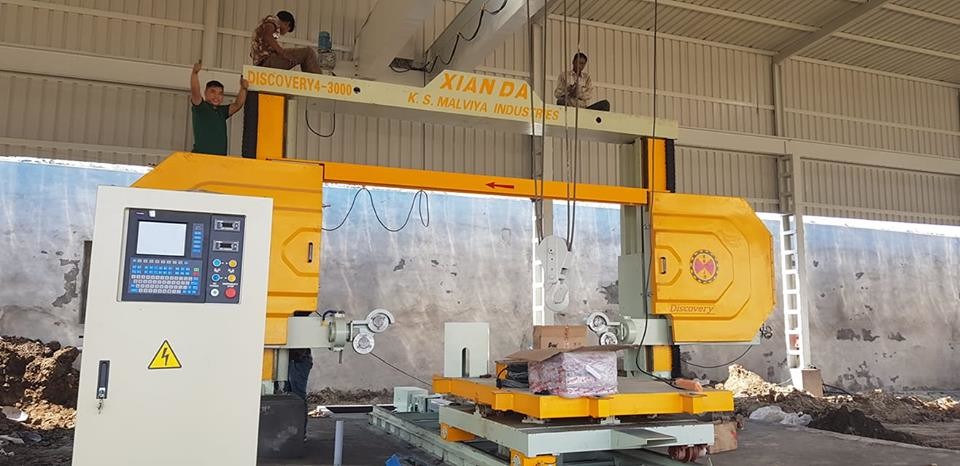

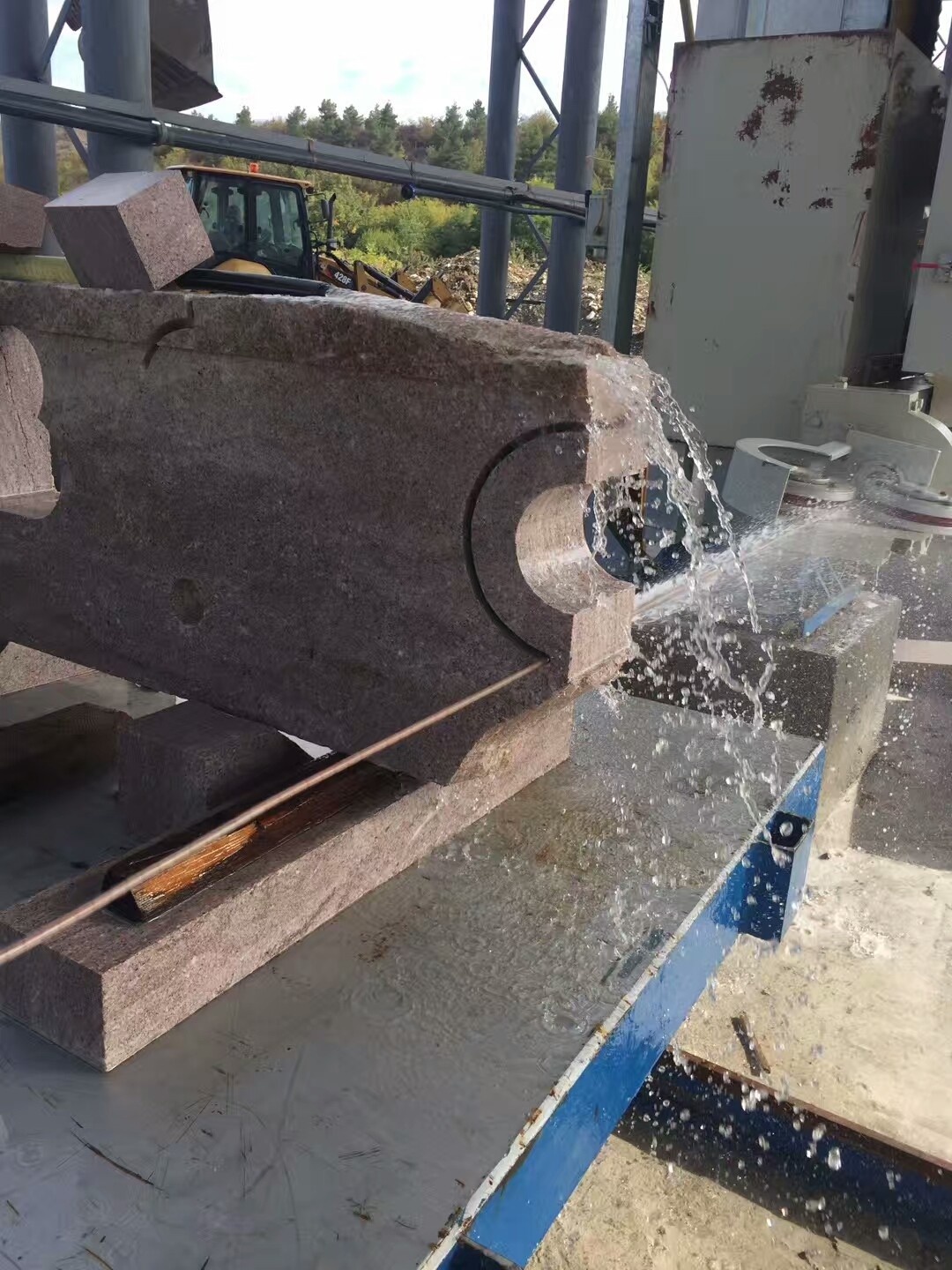

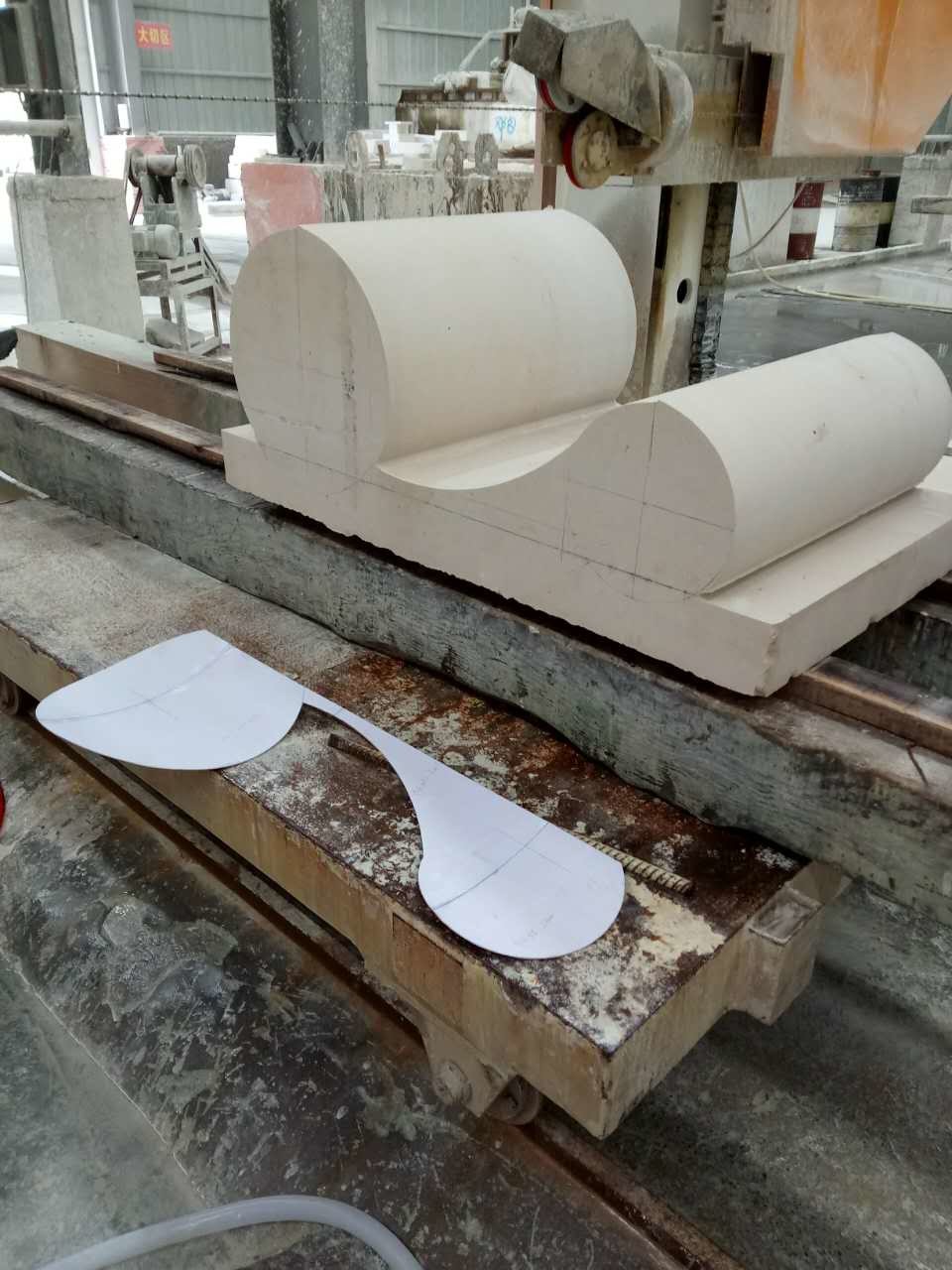

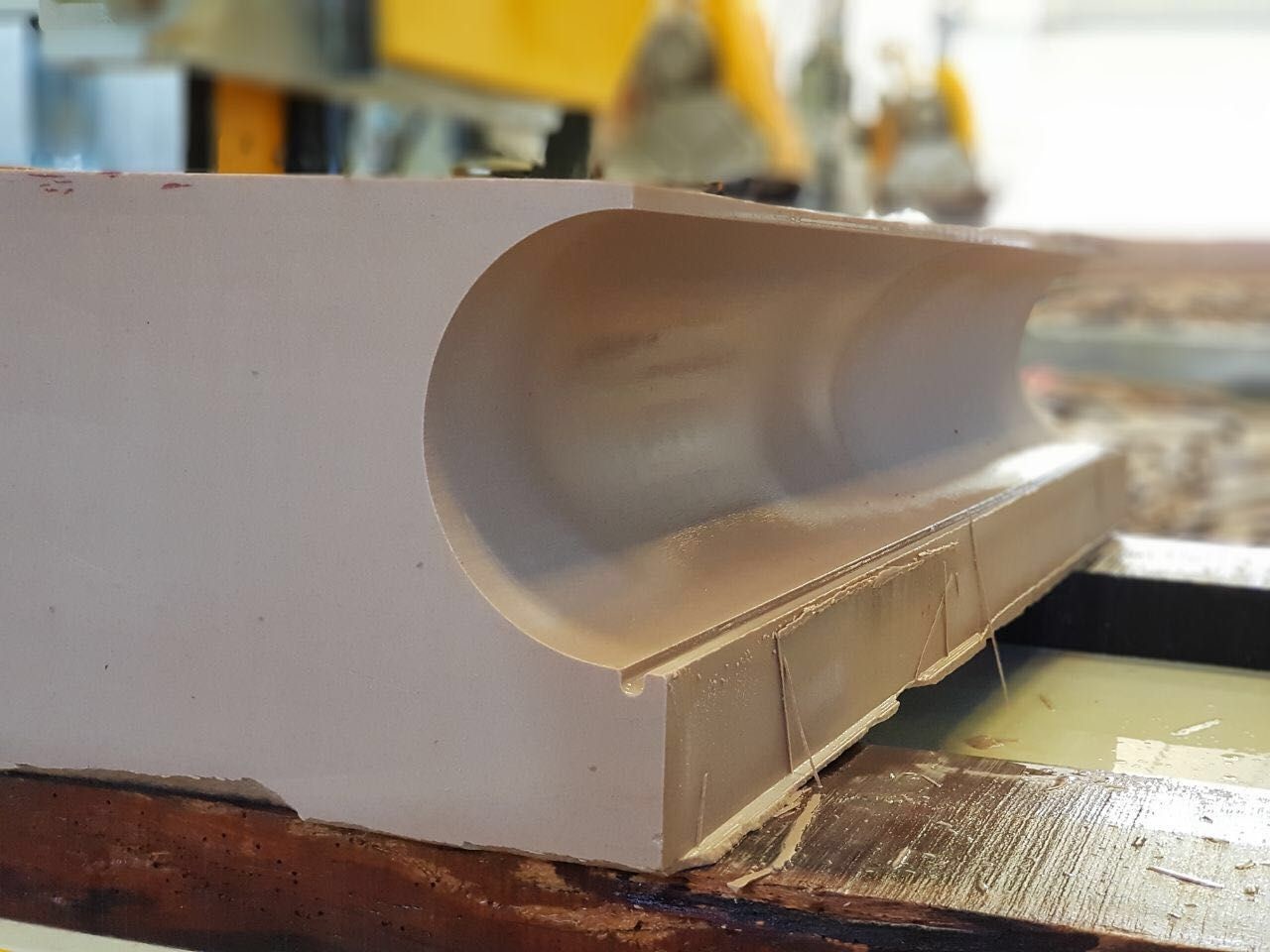

CNC Marble/Granite Diamond Wire Saw For Profiling 0 CNC Marble/Granite Diamond Wire Saw For Profiling 1 CNC Marble/Granite Diamond Wire Saw For Profiling 2
