High Precision Stone Bridge Type Linear Cutting & Milling Machine CNC Controlled for Marble/Granite Profiling

1 SET
MOQ
To be negotiable
Price
High Precision Stone Bridge Type Linear Cutting & Milling Machine CNC Controlled for Marble/Granite Profiling
Features Gallery Product Description Request A Quote
Features
Specifications
Blade Diameter: 350-600mm
Max Lifting Travel Of Cutting Frame: 450mm
Trolley Size: 1800*3500mm
Max Processing Length: 3500mm
Main Motor: 15/18.5kw
Gross Power: 21/24.5kw
Outline Dimension: 5300*3950*2550mm
Water Consumption: 6m3/H
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Application: Machinery & Hardware
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Hs Code: 84641090
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Operation Mode: Automatic
Power Source: Electric
Highlight:

Stone Bridge Linear Cutting Milling Machine

,

High Precision Linear Cutting Milling Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: BLMM-1800
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
High Precision Stone Bridge Type Linear Cutting & Milling Machine CNC Controlled for Marble/Granite Profiling
Key Specifications
Blade diameter 350-600mm
Max lifting travel of cutting frame 450mm
Trolley size 1800*3500mm
Max processing length 3500mm
Main motor 15/18.5kw
Gross power 21/24.5kw
Outline dimension 5300*3950*2550mm
Water consumption 6m3/H
Cutting Method Laser
Cutting Accuracy High
Model No LCMM-1300/1800
Max Cutting Diameter 2500mm
Max Cutting Height 1150mm
Max Cutting Depth 150mm
Advanced 3-Axis CNC System

Our 3-Axis CNC Bridge Type Stone Cutting & Milling Machine combines power, precision, and versatility for superior stone processing. The advanced CNC system integrates rough cutting, fine cutting, and finish milling functions, providing comprehensive solutions for industrial projects and custom designs.

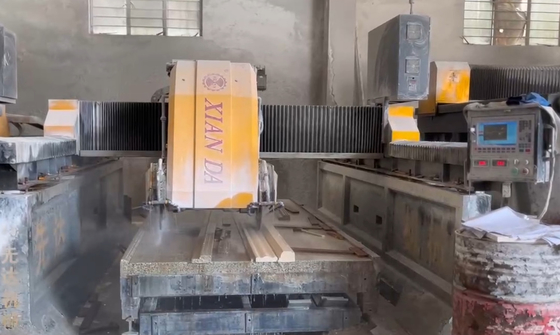

Robust Bridge-Type Structure

The machine's bridge-type structure delivers exceptional stability and rigidity, enabling smooth, vibration-free operation even during heavy-duty cutting tasks. The blade lifting mechanism with guide pillar and copper bush ensures minimal wear while maintaining consistent cutting accuracy.

Precision Engineering

Combining profiling machine power with linear guide ball screw rod accuracy, this system achieves remarkable cutting precision. The linear guide system provides smooth motion while the ball screw rod ensures high-precision positioning, perfect for intricate details and complex shapes.

High Precision Stone Bridge Type Linear Cutting & Milling Machine CNC Controlled for Marble/Granite Profiling 0 High Precision Stone Bridge Type Linear Cutting & Milling Machine CNC Controlled for Marble/Granite Profiling 1 High Precision Stone Bridge Type Linear Cutting & Milling Machine CNC Controlled for Marble/Granite Profiling 2
Technical Specifications
Parameter Unit BLMM-1800
Blade diameter mm 350-600
Max lifting travel of cutting frame mm 450
Trolley size mm 1800*3500
Max processing length mm 3500
Main motor kw 15/18.5 (Optional)
Gross power kw 21/24.5 (Optional)
Outline dimension mm 5300*2950*2550
Water consumption m³/h 6
Key Advantages
• High Efficiency: Integrated functions and powerful motor reduce production time
• Exceptional Accuracy: Linear guide ball screw rod maintains tight tolerances
• Superior Stability: Robust bridge-type structure ensures continuous operation
• Easy Maintenance: Designed for minimal downtime and simple servicing
• Advanced Safety: Comprehensive protection features for operator security
Ideal Applications

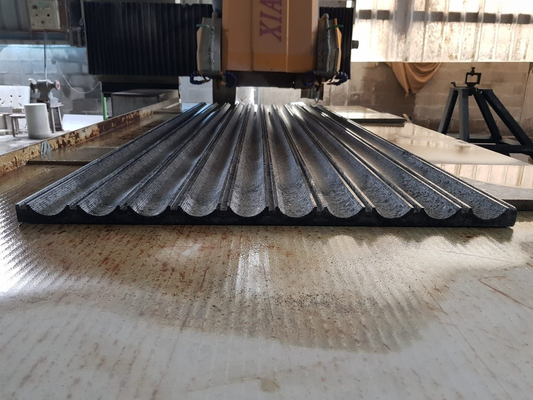

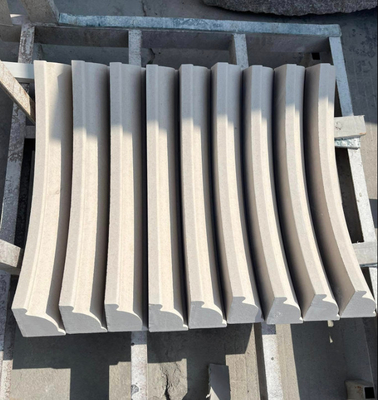

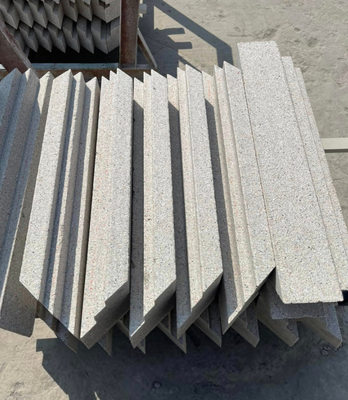

Perfect for processing linear patterns, square balusters, and special-shaped kerbstones. Suitable for architectural stonework, landscape design, and various industrial applications in marble and granite processing.

Why Choose Our Machine?

Our proven technology combines years of research with comprehensive support and training. Offering excellent value for investment, this machine will transform your stone processing capabilities. Contact us today for more information or a personalized quote.
