Precision Block Cutting Machine For Granite,Marble

1 SET
MOQ
To Be Negotiable
Price
Precision Block Cutting Machine For Granite,Marble
Features Gallery Product Description Request A Quote
Features
Specifications
Operation: Automatic,Manual
Cutting Speed: High Speed
Cutting Method: Laser Cutting
Weight: 6500KG
Voltage: 220V/380V
Material: Casting
Cutting Depth: 95/100/120mm
Max Processing Diameter: 2800mm
Main Motor: 45/55/65kw
Left And Right Travel: 3800/3500/3200mm
Moving Front&back Travel: 2200mm
Lifting Stroke: 1320mm
Gross Power: 57/67/77min/㎡
Water Consumption: 15m³/h
Gross Weight: 14000/14500/15000kg
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: BTC-2200/2500/2800
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable For Sea Transportation
Delivery Time: 1 Month
Payment Terms: L/C, T/T, D/P, Western Union ,Paypal ,Money Gram, Others
Supply Ability: 1000 Sets/Year
Product Description

Precision Block Cutting Machine For Granite,Marble



Transform your stone processing operations with our Block Cutting Machine, engineered to deliver precision, efficiency, and reliability for granite and marble cutting tasks.

Key Features & Technical Advantages

Intelligent Inverter-Powered Feeding System
Our machine is equipped with a state-of-the-art inverter technology that controls the left-right feeding mechanism. This intelligent system enables operators to precisely adjust the feeding speed according to the hardness and characteristics of various stones. Whether it’s dense granite or delicate marble, the machine adapts in real-time, optimizing cutting performance and reducing material waste. This feature not only boosts productivity but also extends the lifespan of cutting blades, leading to significant long-term cost savings.

Advanced Hydraulic & Screw Nut Driven Slicing

  • Hydraulic Lifting System: A robust hydraulic mechanism ensures seamless vertical movement, allowing for effortless positioning of the cutting blade at the desired height.
  • High-Precision Screw Nut Driving: The forward-backward slicing mechanism utilizes a high-precision screw nut system, guaranteeing consistent and accurate cuts with every pass.
  • Automatic Slicing Function: Set the cutting parameters, and let the machine handle the rest. This automated process eliminates human error and ensures uniform thickness across all slices, meeting the strictest industry standards for high-quality stone slabs.
  •

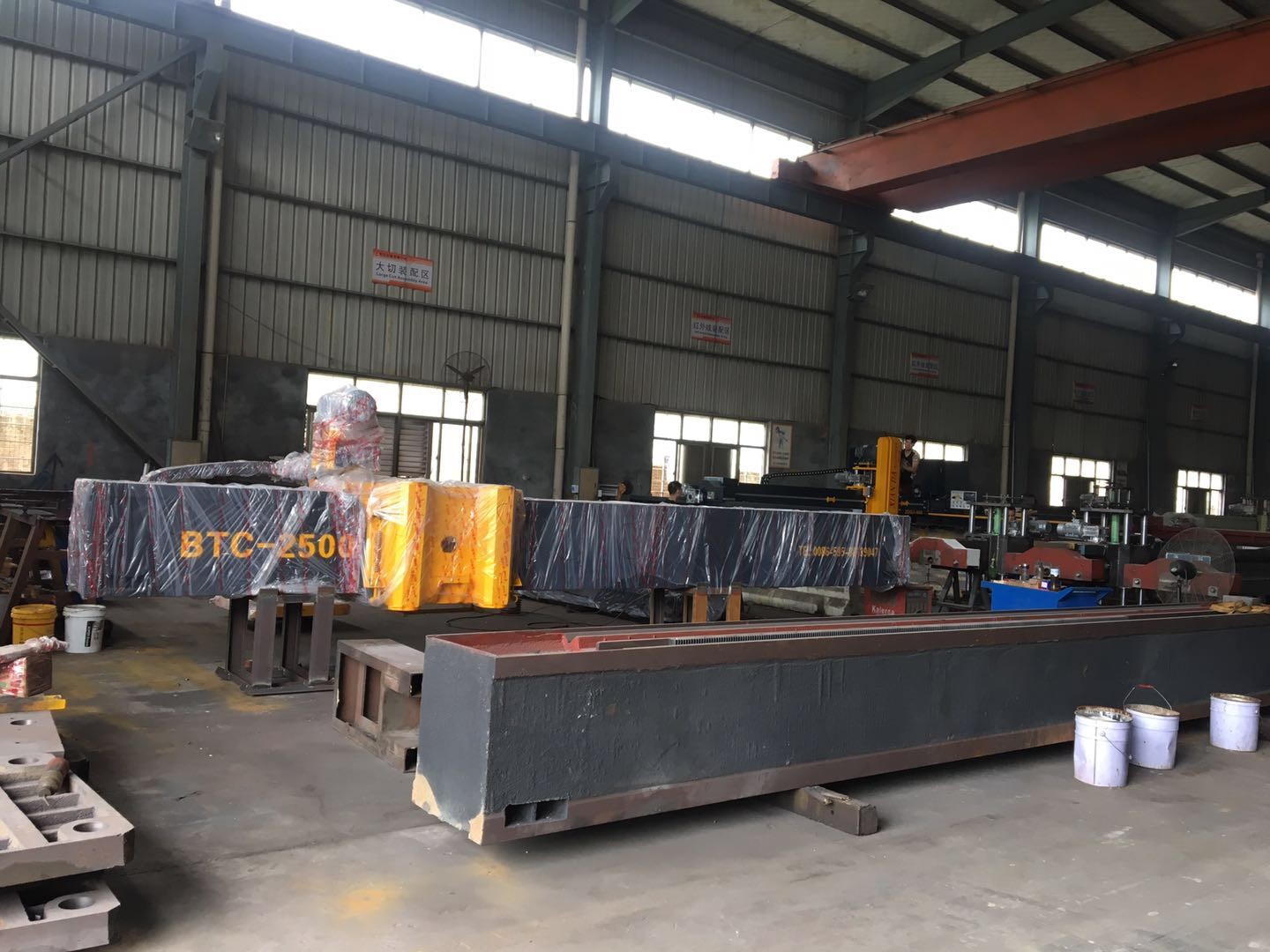

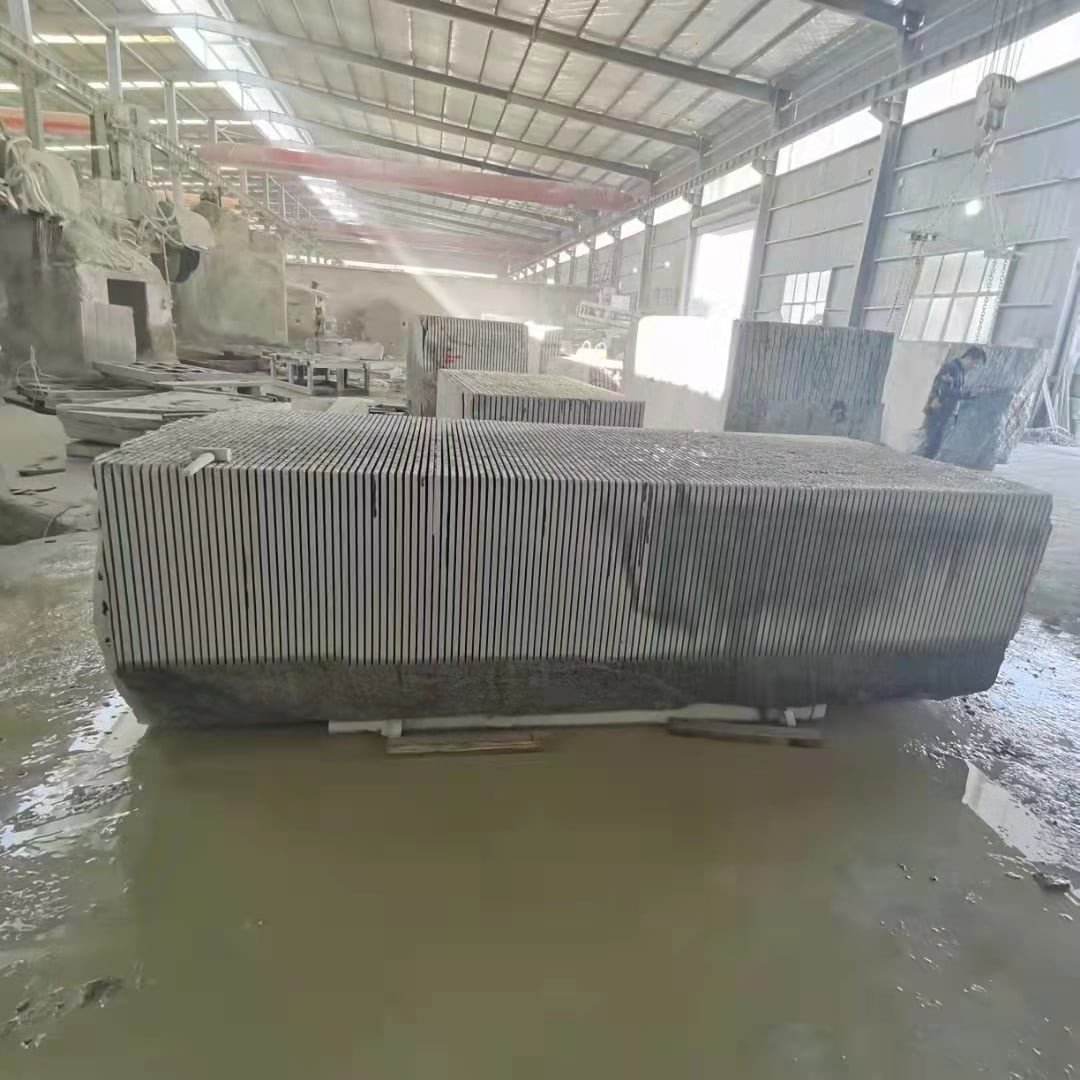

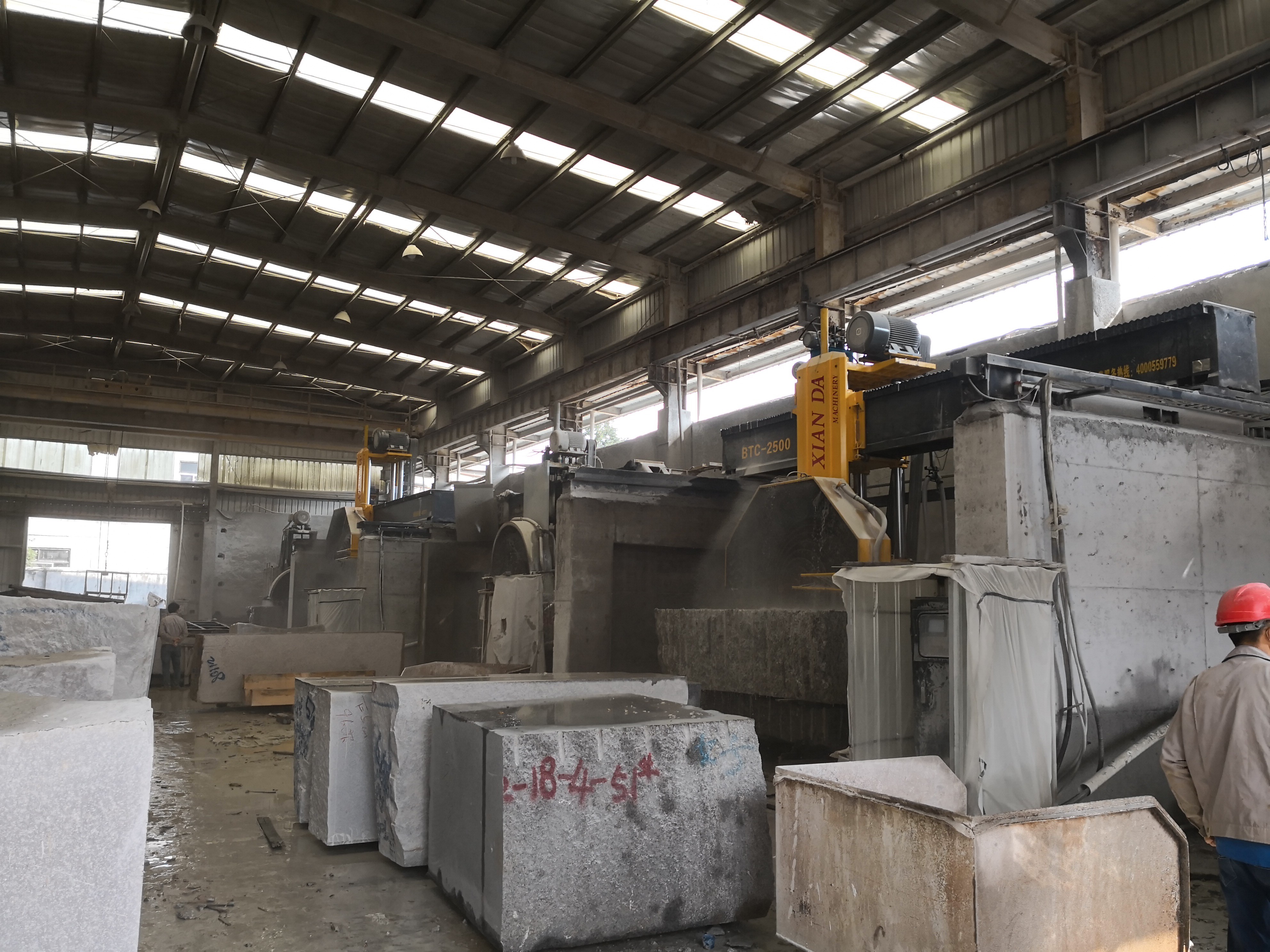

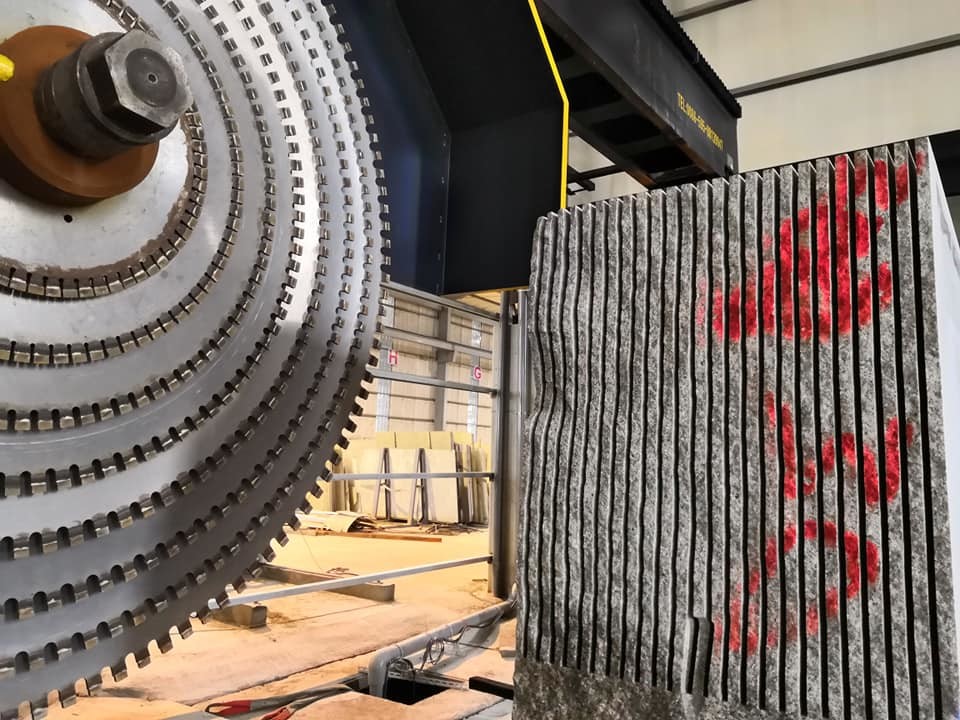

Precision Block Cutting Machine For Granite,Marble 0Precision Block Cutting Machine For Granite,Marble 1Precision Block Cutting Machine For Granite,Marble 2



Technical Parameter

Parameter Unit BTC-2200 BTC-2500 BTC-2800
Max blade diameter mm 2200 2500 2800
Left and right travel mm 3800 3500 3200
Moving front&back travel mm 2200 2500 2800
Lifting stroke mm 1320 1320 1320
Main motor kw 45/55 45/55 55/65
Gross power min/m² 57/67 57/67 67/77
Outline dimension mm 8000*4800*3700 8000*4800*3700 8000*4800*3700
Water consumption m³/h 15 15 15
Gross weight kg 14000 14500 15000





Premium Imported Components

We prioritize durability and reliability by using imported materials for all main components. Rigorously tested to withstand the harsh conditions of stone processing, these top-grade parts ensure superior performance, stability, and longevity, even under continuous heavy-duty operation. From the cutting blade to the control system, every element is designed for long-lasting, trouble-free use.
Space-Saving & Cost-Effective Design
Our machine features a ground-level block placement design, eliminating the need for elevated platforms or complex setups. This innovative design not only saves valuable workspace but also reduces installation and maintenance costs. With easy access for servicing, downtime is minimized, and productivity is maximized.

Unmatched Performance Benefits

  • High Cutting Efficiency: Produce a high volume of slabs in a short period, significantly increasing output.
  • Superior Slicing Precision: Achieve smooth, flat surfaces on each slab, reducing the need for additional finishing work.
  • Exceptional Stability: Designed for continuous operation, ensuring reliable performance day in and day out.
  • User-Friendly Operation: An intuitive control panel and straightforward operation make it accessible for both novice and experienced operators.

Ideal Applications

Perfect for both large-scale stone manufacturers and small workshops, our Block Cutting Machine is the ultimate solution for processing high-value granite and marble blocks. Its advanced technology, durable construction, and user-friendly design offer a cost-effective way to enhance your stone processing capabilities.

Why Choose Our Block Cutting Machine?

  • Proven Technology: Backed by years of research and development, our machine incorporates the latest advancements in stone cutting technology.
  • Tailored Support: Our team of experts provides comprehensive technical support and training to ensure optimal performance.
  • Customer-Centric Service: We’re committed to delivering a seamless experience, from purchase to after-sales service.
Contact us today to learn more about how our High-Performance Block Cutting Machine can transform your stone processing business and take your productivity to new heights.
