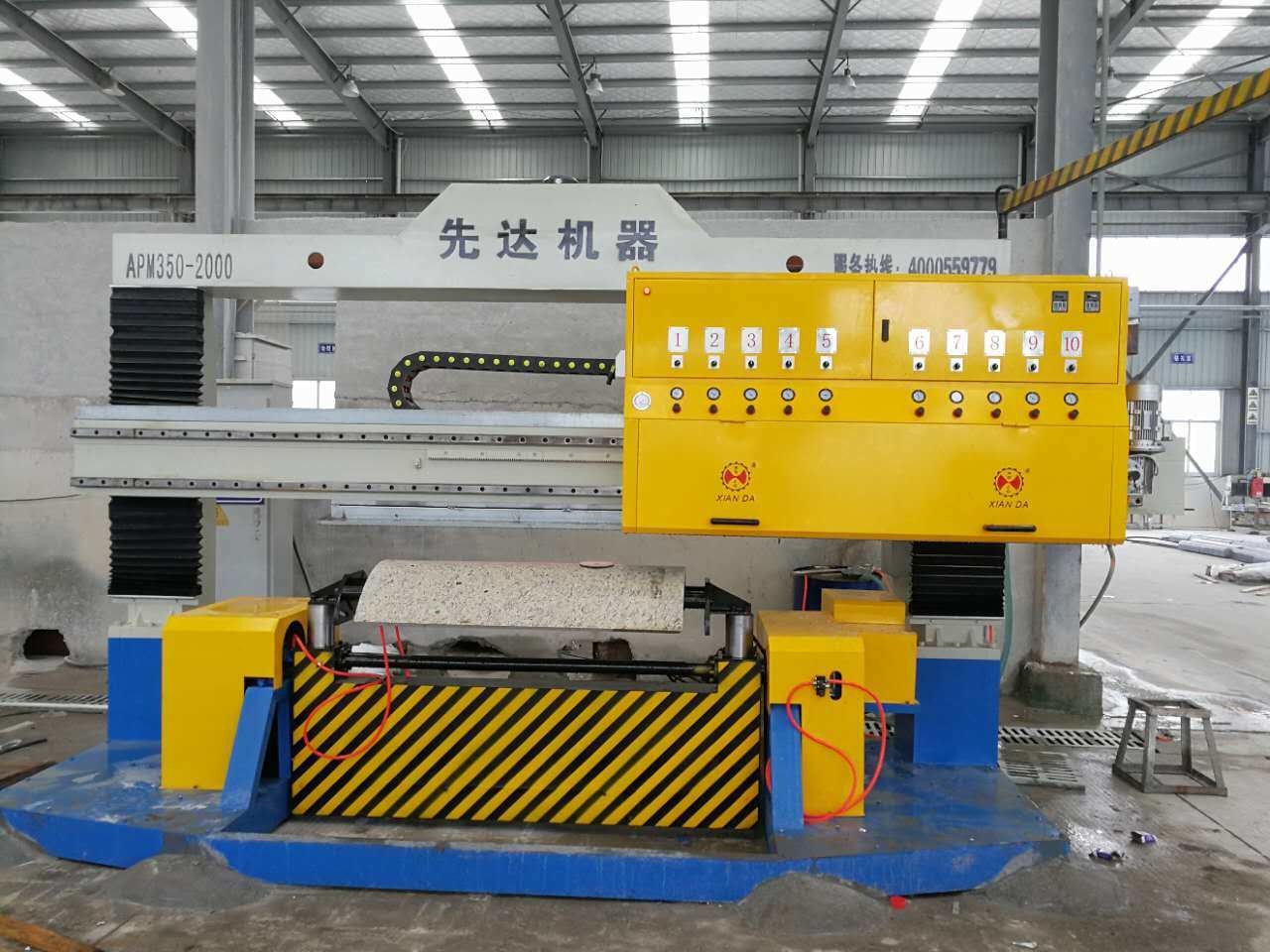

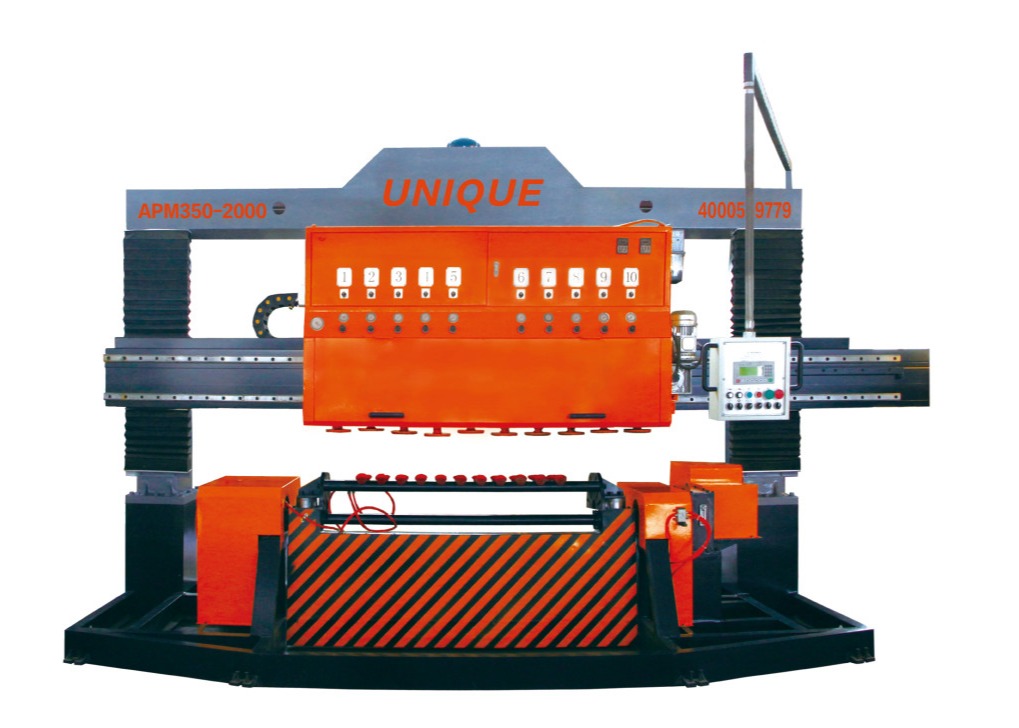

PLC Circular Stone Slab Polishing Machine For Processing Hollow Column
Product Specifications
| Attribute | Value |
| Model NO. | APM-350-2000-10 |
| Automation | Automatic |
| Cutting Ability | High Speed |
| Control | PLC |
| Column of Diameter | Φ350mm-Φ2000mm |
| Max Cutting Width | 1300mm |
| Outline Dimension | 5200*1800*3000mm |
| Grinding Number | 10 Pieces |
| Gross Motor | 30kw |
| Efficiency | ≈5 M²/H |
| Water Consumption | 6m³/H |
| Gross Weight | 5000kg |
| Transport Package | Plastic Package, Suitable for Sea Transportation |
| Trademark | Xianda |
| Origin | Jinjiang, Fujian, China |
| HS Code | 84641090 |
| Supply Ability | 1000 Sets/Year |
| After-sales Service | One Year for Spare Part |
| Warranty | One Year |
| Type | Stone Polishing Machine |
| Usage | Granite |
| Application | Machinery & Hardware |
| Source Voltage | 380V |
| Customization | Available |
Product Description

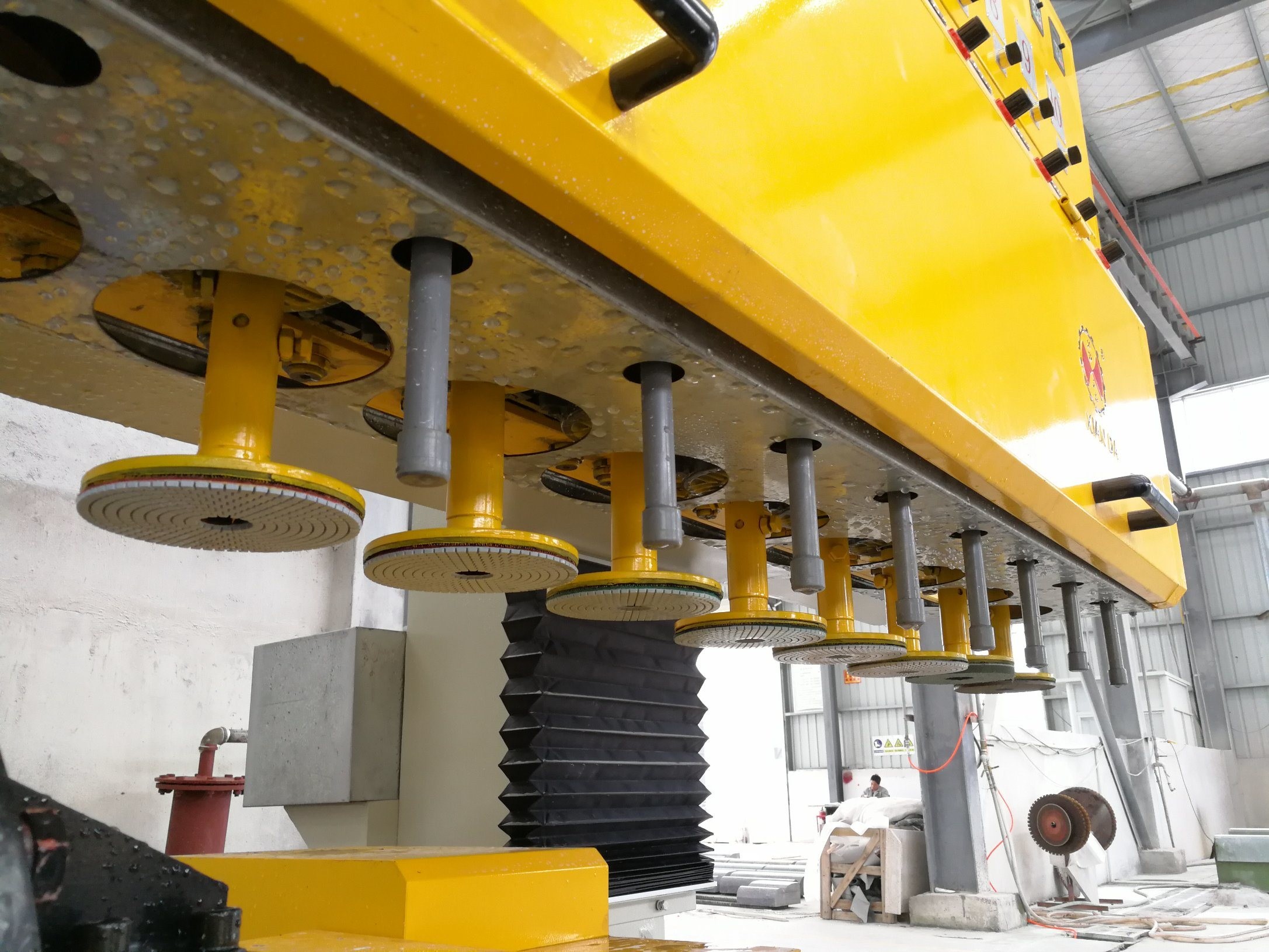

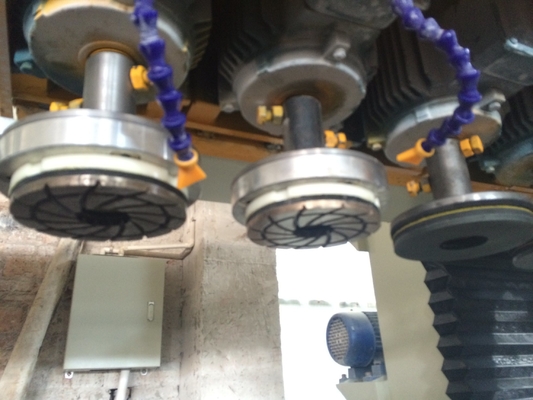

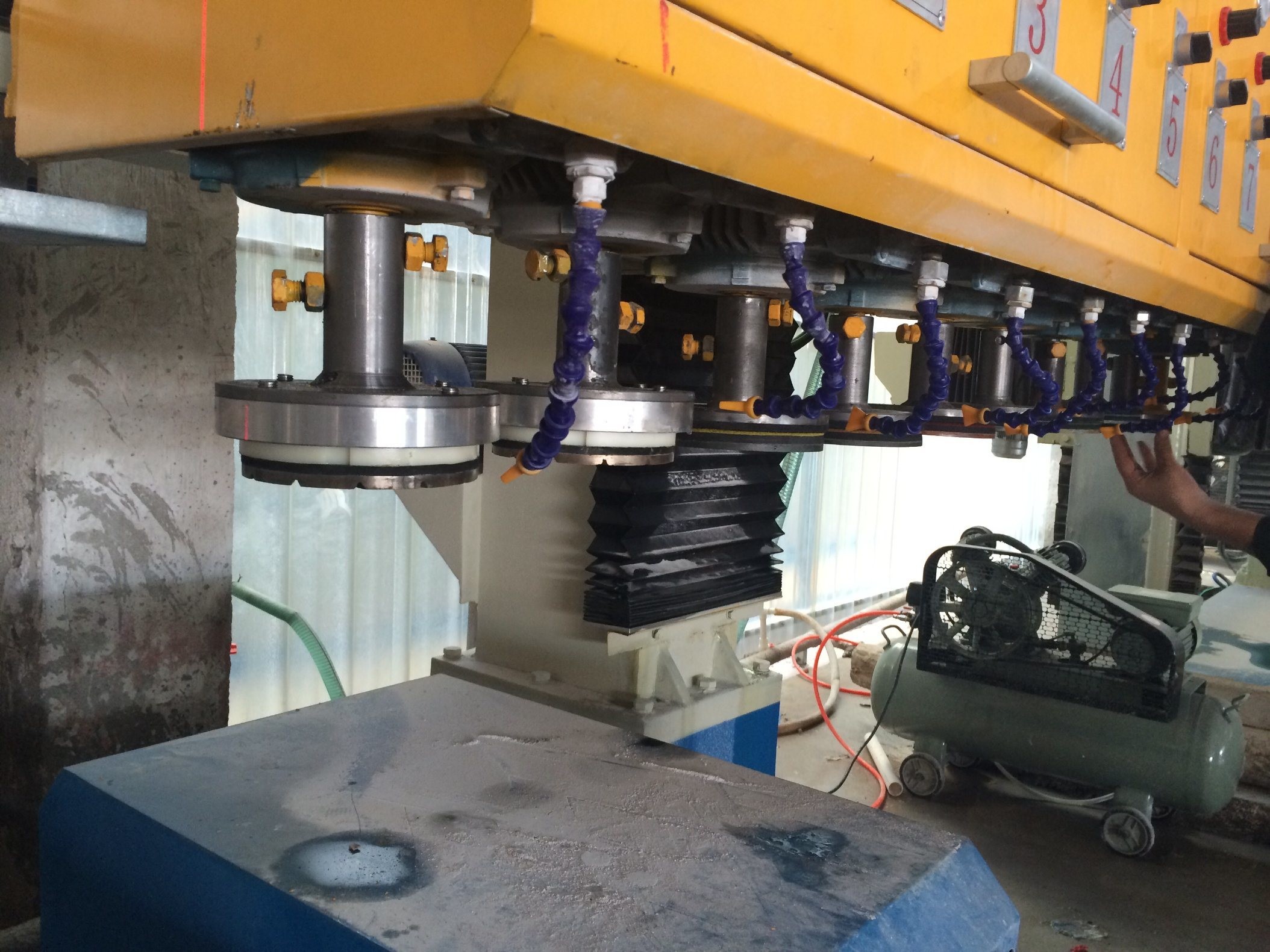

This advanced PLC-controlled circular slab polishing machine utilizes vacuum fixation technology, which provides superior stability compared to traditional side-gripping methods. It effectively eliminates verticality and inclination errors that may occur after trimming, while preserving the integrity of column slab edges. Featuring linear guides, multiple polishing heads, and PLC system control, this machine delivers high precision, exceptional efficiency, and user-friendly operation - making it the ideal solution for professional column slab polishing.
Technical Parameters
| Parameter | Unit | APM-350-2000-10 |
| Processing diameter | mm | φ350-φ2000 |
| Processing length | mm | 1300 |
| Grinding number | piece | 10 |
| Gross motor | kw | 30 |
| Efficiency | m²/h | ≈5 |
| Outline dimension | mm | 5200*1800*3000 |
| Water consumption | m³/h | 6 |
| Gross weight | kg | 5000 |
Company Profile
Fujian Xianda Machinery Co., Ltd., established in 1985, specializes in the development and production of stone processing machinery including column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.
With rapid development and expansion, we have achieved ISO9001 certification, CE marking, and received numerous honors including the International Gold Plant Quality Award. Committed to "Advanced Technology and High Quality," we have developed a comprehensive range of 'Xianda' brand specialized stone shape processing machines.
Our Service Commitment
We provide machine testing videos and conduct strict inspections for every machine before shipping
24-hour online after-sales support with continuous staff training to enhance service quality
Professional technical guidance for machine installation, commissioning, and operator training
Shipping & Packaging
Frequently Asked Questions
How to place an order with your company?
- Inquiry - Professional quotation
- Confirm price, lead time, logo, payment terms
- Receive Proforma Invoice with official seal
- Make deposit payment and send bank receipt
- We confirm payment receipt and begin production
How is after-sales service provided?
Our engineers can be dispatched for machinery assembly and technical support.
Are you a manufacturer?
Yes, we have been manufacturing stone machinery for over 30 years.
Does this product support customization?
Yes, we offer customization options to meet specific requirements.
How do you ship the products?
We use secure plastic packaging suitable for sea transportation.
What is the warranty for the product?
We provide a one-year warranty for spare parts.
