Home /Products/Stone Slab Cutting Machine/Granite Arc Slab Stone Slab Cutting Machine 1300mm 5200x1700x2900mm

Granite Arc Slab Stone Slab Cutting Machine 1300mm 5200x1700x2900mm

1set
MOQ
To Be Negotiated
Price
Granite Arc Slab Stone Slab Cutting Machine 1300mm 5200x1700x2900mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: APM350-2000
Cutting Ability: High Speed
Control: PLC
Use For: Circular Stone Slab Polishing
Processing Diameter: 350-2000mm
Processing Length: 1300mm
Grinding Number: 10
Efficiency: ≈7min/M²
Gross Motor: 27.5kw
Water Consumption: 6m³/H
Gross Weight: 5000kgs
Specification: 5200x1700x2900mm
Trademark: UNIQUE
Origin: Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Warranty: 12 Months
Type: Bridge Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Customization: Available | Customized Request
Highlight:

Stone Slab Cutting Machine 1300mm

,

Arc Slab Granite Polishing Machine

,

Stone Slab Cutting Machine 5200x1700x2900mm
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: ISO
Model Number: APM350-2000
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets Per Year
Product Description
Granite Arc Slab Stone Slab Cutting Machine 1300mm 5200x1700x2900mm
Product Specifications
Attribute Value
Model NO. APM350-2000
Cutting Ability High Speed
Control PLC
Use for Circular Stone Slab Polishing
Processing Diameter 350-2000mm
Processing Length 1300mm
Grinding Number 10
Efficiency ≈7min/M²
Gross Motor 27.5kw
Water Consumption 6m³/H
Gross Weight 5000kgs
Specification 5200x1700x2900mm
Trademark UNIQUE
Origin Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Warranty 12 Months
Type Bridge Cutting Machine
Usage Granite
Application Machinery & Hardware
Source Voltage 380V
Automation Automatic
Customization Available
Granite Polishing Machine, Arc Slab Polishing Machine

Marble granite stone arc slab circular slab polishing machine for stone processing

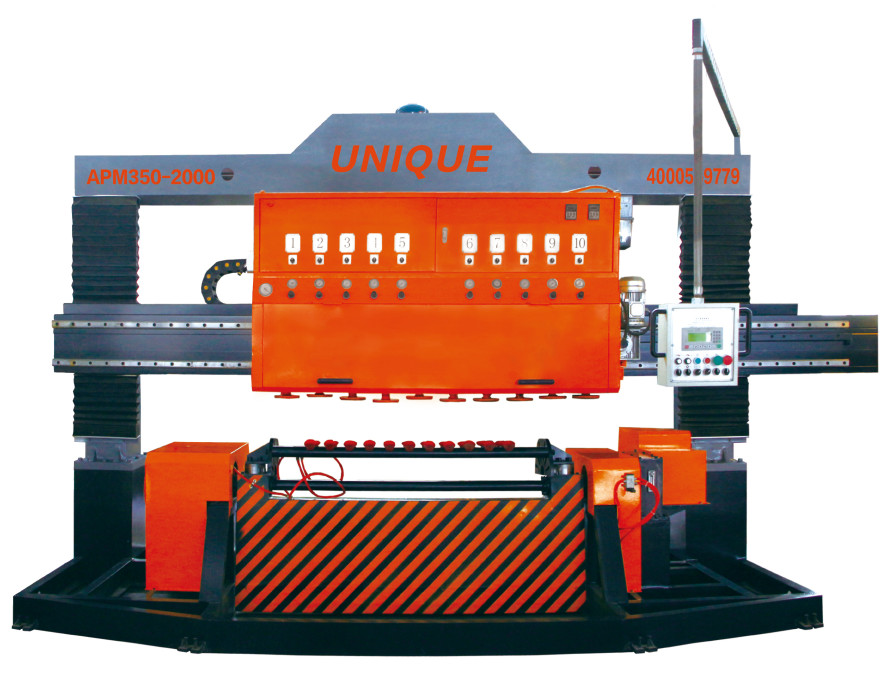

APM-350-2000, Arc Slab Polishing Machine fixes the arc slab by vacuum sucker, replacing conventional clamping fixing on both sides. This solution eliminates the deviation of squareness and inclination generated by steps trimming-grinding, while addressing customer concerns about arc slab edge & angle damage.

The machine adopts linear guides, multi grinding head and PLC system, featuring high-precision, high efficiency, and easy operation. It is the ideal equipment for arc slab polishing.

Technical Parameters
Parameter Unit APM-350-2000-10 APM-350-2000-12
Processing diameter mm φ350-φ2000 φ350-φ2000
Processing length mm 1300 1300
Grinding number piece 10 12
Gross motor kw 27.5 32
Efficiency min/m² ≈7 ≈8
Outline dimension mm 5200x1700x2900 5800x1700x2900
Water consumption m³/h 6 7
Gross weight kg 5000 6000
Product Showcase
Granite Arc Slab Stone Slab Cutting Machine 1300mm 5200x1700x2900mm 0
Certifications
Granite Arc Slab Stone Slab Cutting Machine 1300mm 5200x1700x2900mm 1
Our Services
Granite Arc Slab Stone Slab Cutting Machine 1300mm 5200x1700x2900mm 2
Why Choose Us
  • 32 years' manufacturing experience with over 70% market share in China for special shape stone cutting machines
  • Top 5 stone cutting machine manufacturer with ISO & CE certification
  • Products exported to more than 20 countries with over 10 years international experience
  • Use of top brand components to ensure high quality
  • Competitive pricing and quantity discounts available
  • Strong production capacity of over 1000 sets per year
  • 24/7 online after-sales support
  • Professional installation guidance and operator training
  • Quality assurance with strict inspection before shipping
  • Machine testing videos available upon request
Frequently Asked Questions
Does this product support customization?
Yes, we offer customization options to meet specific requirements.
How do you ship the products?
We arrange professional shipping with secure packaging to ensure safe delivery.
What is the warranty for the product?
This product comes with a 12-month warranty.
