Home /Products/Diamond Wire Saw Machine/Diamond Wire Saw Machine For Marble Granite Profiling

Diamond Wire Saw Machine For Marble Granite Profiling

1 set
MOQ
To Be Negotiated
Price
Diamond Wire Saw Machine For Marble Granite Profiling
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Diamond Wire Saw Machine
Application: Cutting,Marble,granite,profiling
Material: Diamond,Casting,Diamond Wire Saw,rubber
Usage: Rock Cutting,Stone Carving,diamond Wire Saw
Wheel Diameter: 1600mm
Advantage: High Efficiency Long Life Time,High Working Efficiency,high Quality,Fast Cutting,15 Years Experience
Main Motor: 11kw
Outline Dimension: 6800*6300*3800mm
Business Type: Manufacturer,Manufacturer And Trading
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Wire Length: 10m
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

8.8mm Diamond Wire Saw Unique

,

8.8mm wire saw for concrete

,

Cutting Stone diamond string saw
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CE
Model Number: CNC-2000/2500/3000
Payment & Shipping Terms
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000m/day
Product Description
Diamond Wire Saw Machine For Marble Granite Profiling
Key Features
  • CNC control with four-spindle linkage for precise shaping
  • Processes circular stone slabs, columns, numerals, letters, and Chinese characters
  • High cutting efficiency with smooth slab results
  • Low powder consumption and minimal raw material waste
  • Safe, eco-friendly operation with low noise
  • Easy to operate with low maintenance costs
Technical Specifications
Type:
Diamond wire saw machine
Application:
Cutting marble, granite, profiling
Wheel Diameter:
1600mm
Main Motor:
11kw
Max Processing Size:
3000×2500×1500mm
Wire Diameter:
0.6-1.8mm
Automation:
Automatic
Control System:
PLC SYSTEM
Cutting Precision:
High
Water Consumption:
6m³/H
Model Comparison
Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size mm 2000×3000×1500 2500×3000×1500 3000×3000×1500
Wheel diameter mm 1600 1600 1600
Trolly size mm 1300×2500 1300×2500 1300×2500
Table bearing weight T 15 15 15
Main motor kw 11 11 11
Wire speed m/s 0-40 0-40 0-40
Outline dimension mm 6800×6300×3800 7800×6300×3800 8800×6300×3800
Gross weight kg 5500 5750 6000
Water consumption m³/h 4 4 4
Product Images

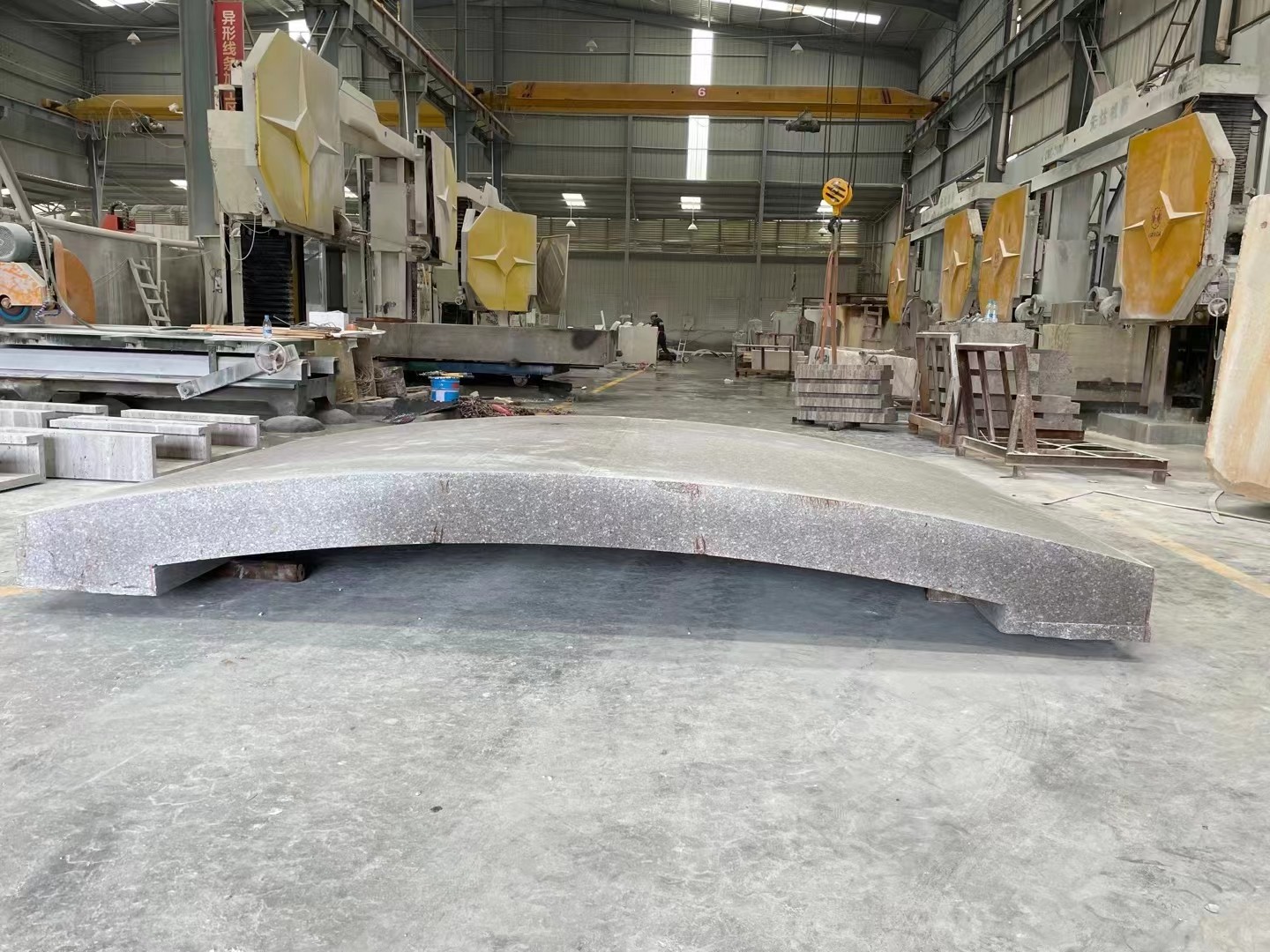

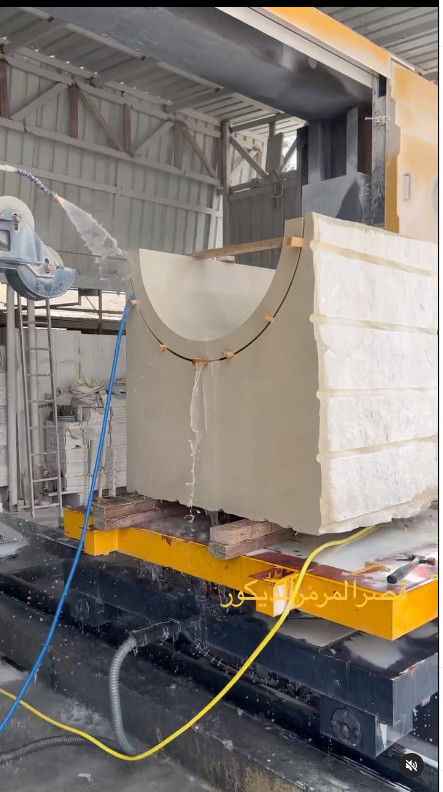

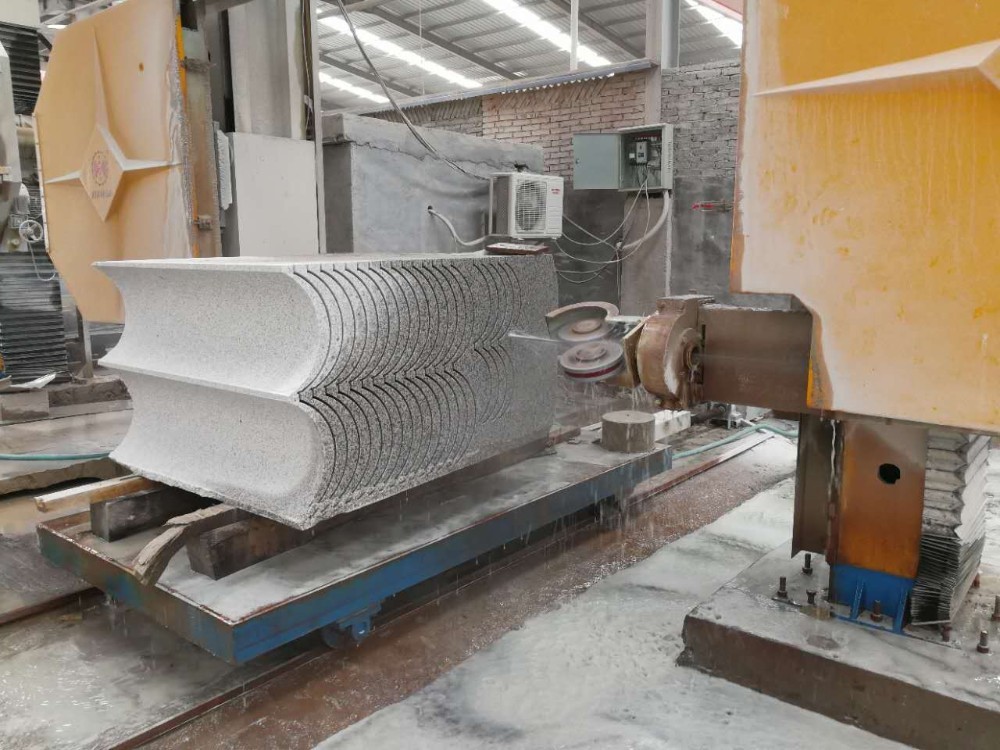

Diamond Wire Saw Machine For Marble Granite Profiling 0 Diamond Wire Saw Machine For Marble Granite Profiling 1
Advantages
  • High efficiency with long life time
  • Fast cutting capability
  • Built with 15 years of manufacturing experience
  • High quality construction materials
  • Precision CNC control for accurate results
