CNC Diamond Wire Saw Machine for Marble Circular Plate Digital Letter Cutter
Product Overview

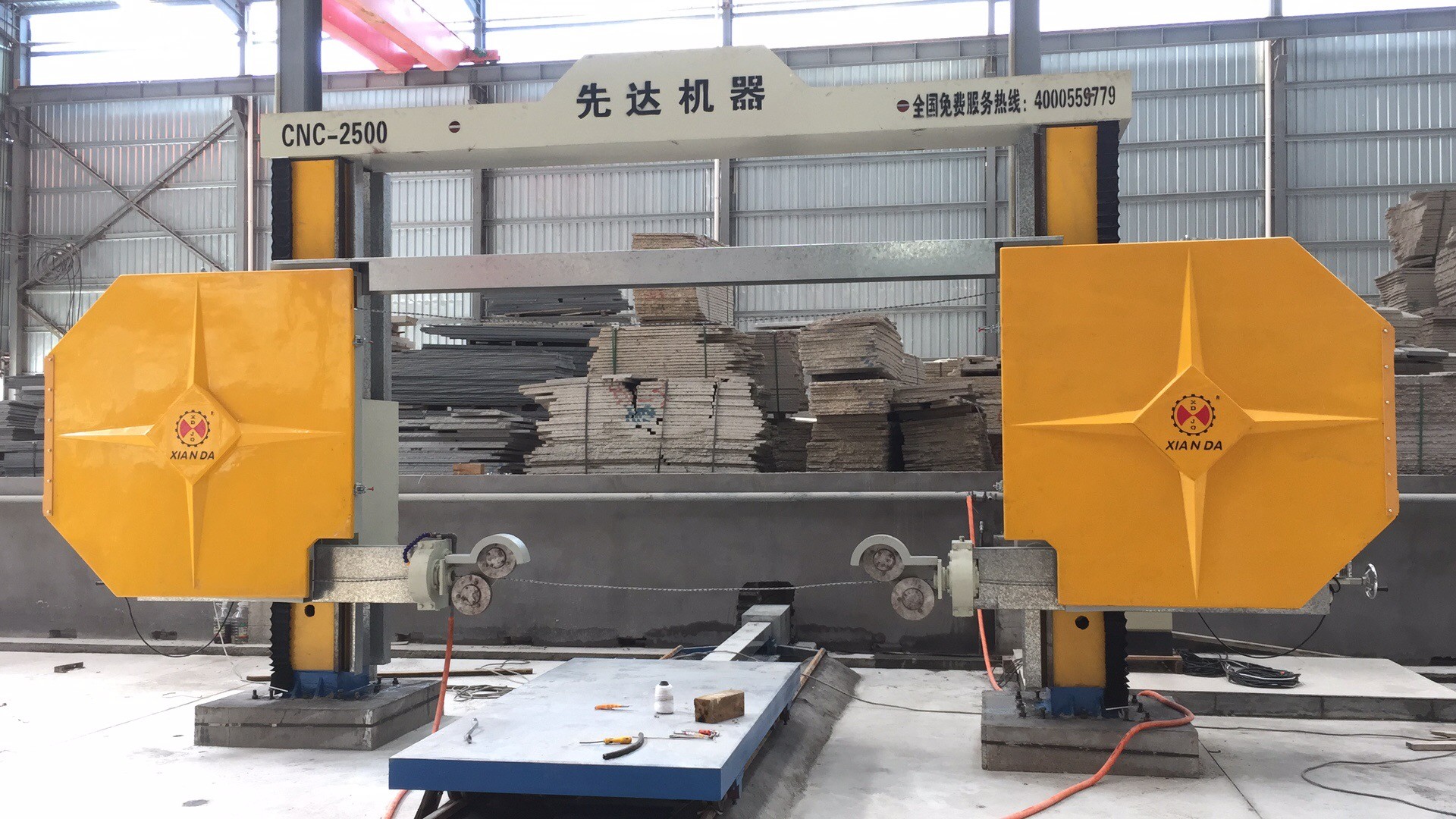

This CNC Diamond Wire Saw Machine (Model CNC-2000/2500/3000) features a CNC system with Four-Axis linkage, capable of processing circular stone slabs, roman columns, numerals, letters, Chinese characters, and other designed shapes.
Key Features
- Heavy load bearing structure with four orbits on each upright column for balance adjustment, reduced friction, and higher precision
- Synchronized lifting of left and right frames via steering equipment, with enhanced accuracy through lead screw and double nuts combination
- Cantilever design with CNC-controlled guide wheel and reducer-controlled rotation angle for precise diamond wire rope cutting
- Lead screw and railway-operated worktable
- Automatic wire break alarm system
- 1600mm diameter aluminum wheel with oil pump-controlled rope tension
Technical Specifications
| Parameter |
Unit |
CNC-2000 |
CNC-2500 |
CNC-3000 |
| Max processing size |
mm |
3000×2000×1500 |
3000×2500×1500 |
3000×3000×1500 |
| Dimension of worktable |
mm |
2500×1300 |
2500×1300 |
2500×1300 |
| Main motor |
kw |
7.5 |
7.5 |
7.5 |
| Gross motor |
kw |
11 |
11 |
11 |
| Outline dimension |
mm |
6500×6300×3800 |
7000×6300×3800 |
7500×6300×3800 |
| Gross weight |
kg |
5000 |
5500 |
6000 |
| Water consumption |
m³/h |
4 |
4 |
4 |
General Specifications
Model No.: CNC-2000/2500/3000
Application: Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry
Source Voltage: 380V
Automation: Automatic
Control: CNC
Certification: API, CCC, SONCAP, GOST, ISO, CE
Color: Blue and Yellow
Transport Package: Load in a 20 Feet Container
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Production Capacity: 1000 Sets/Year
Product Images
Company Information
Fujian Jinjiang Xianda Machinery Co. Ltd, established in 1985, specializes in developing and producing column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.
With ISO9001 certification and CE compliance, we have earned numerous honors including the International Gold Plant Quality Award. Our "Xianda" brand machines are known for advanced technology and high quality in special stone shape processing.
Quality Assurance
| Manufacturer Profiles |
Quality Control |
- Top 10 stone cutting machine manufacturer with ISO & CE certification since 1985
- 70% China market share in special shape stone cutting machines
- Specialized in producing stone machines for export
|
- Experienced QC team
- Strict machine inspection process
- Testing video provided before shipping upon request
|
| Delivery Time |
Warranty |
| Approximately three weeks against payment (based on order quantity) |
One year parts warranty service |
After-Sales Service
- Machine installation and operation training
- Overseas engineer service available
- 24-hour online after-sales support
Frequently Asked Questions
Q: How is After-sales Service Provided?
A: Engineers can be dispatched for machinery assembly
Q: Are you a Manufacturer Factory?
A: Yes, we have been a stone machinery factory for over 30 years
Q: What is the warranty period for the machine?
A: We provide one year parts warranty service
Q: What applications is this machine designed for?
A: Designed for cutting lines on stone including columns, big arc shaped slabs, and special stone shapes
