3 Axis CNC Bridge Type Linear Cutting and Milling Machine
Product Overview
The Xianda Machinery High Accuracy 3 Axis CNC Linear and Milling Machine features a 3-axis CNC system capable of rough cutting, fine cutting, and finish milling operations. Its bridge-type structure with guide pillar blade lifting and copper bush provides high efficiency, accuracy, and stability for processing linear, square baluster, and special-shaped kerbstones.
Key Features
- 3-axis CNC system for precise control
- Bridge-type structure for stability
- Guide pillar blade lifting with copper bush
- Combines profiling machine power with linear guide accuracy
- Ball screw rod mechanism
- High efficiency and processing accuracy

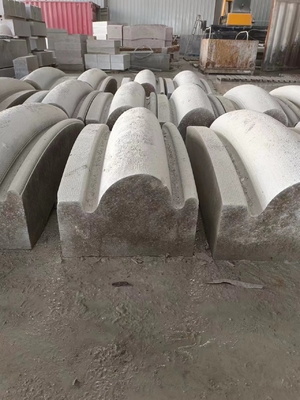

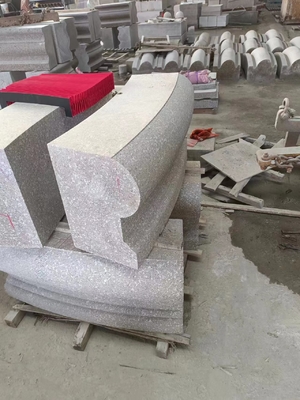

- Ideal for linear, square baluster, and special-shaped kerbstones
Technical Specifications
| Parameter |
Unit |
BLMM-1800MAX-A |
BLMM-1800MAX-B |
| Blade diameter |
mm |
φ400-700 |
φ400-700 |
| Spindle quantity |
mm |
1 Spindle (2Blades) |
1 Spindle (2Blades) |
| Max lifting travel of cutting frame |
mm |
600 |
600 |
| Trolley size |
mm |
1800*3500 |
1800*3500 |
| Max processing length |
mm |
3500 |
3500 |
| Main motor |
kw |
18.5/22 |
18.5/22 |
| Gross power |
kw |
24/27.5 |
24/27.5 |
| Outline dimension |
mm |
6200*4350*3600 |
6200*4100*3600 |
| X axis transmission structure |
/ |
Walking wheel |
Linear guide |
| Y axis transmission structure |
/ |
Single Y axis drive |
Dual Y axis drive |
| Water consumption |
m³/h |
6 |
6 |
Basic Information
Application
Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry
Cutting Ability
High Speed
Certification
API, CCC, SONCAP, GOST, ISO, CE
Max Lifting Travel of Cutting Frame
400mm
Outline Dimension
5100*3350*2400mm
Transport Package
Plastic Package, Suitable for Sea Transportation
Specification
4700*2330*2000mm
Origin
Jinjiang, Fujian, China
Production Capacity
1000sets /Year
About Xianda Machinery
Fujian Xianda Machinery Co., Ltd is a leading Chinese manufacturer of stone cutting machines and tools, established in 1985. Located in Jinjiang Wuli Industrial area near the historic Wuli Bridge and the world's largest stone market in Shuitou, our 20,000m³ facility specializes in developing diamond wire saw machines, column processing machines, bridge cutting machines, and more.
With over 34 years of experience, we hold 80% of China's market for column processing machines and serve customers in more than 30 countries. Our commitment to "Top Technology and Superior Quality" has earned us CE and ISO certifications, along with numerous industry awards.
Exhibition
Our Product Range
Certifications
Frequently Asked Questions
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt
5. Sales confirm the receipt of down payment After approval, we will arrange the production & inform the estimated time
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years
Q: What about the warranty time of the machine?
A: We provide one year for parts warranty service
Q: What can this machine be used to?

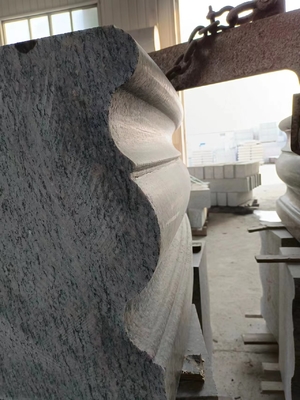

A: This machine is designed to cut lines on stone like columns lines, big arc shaped slabs and special stone shapes.
