High Productivity Round Ball Forming Machine

High Productivity Round Ball Forming Machine

Product Overview

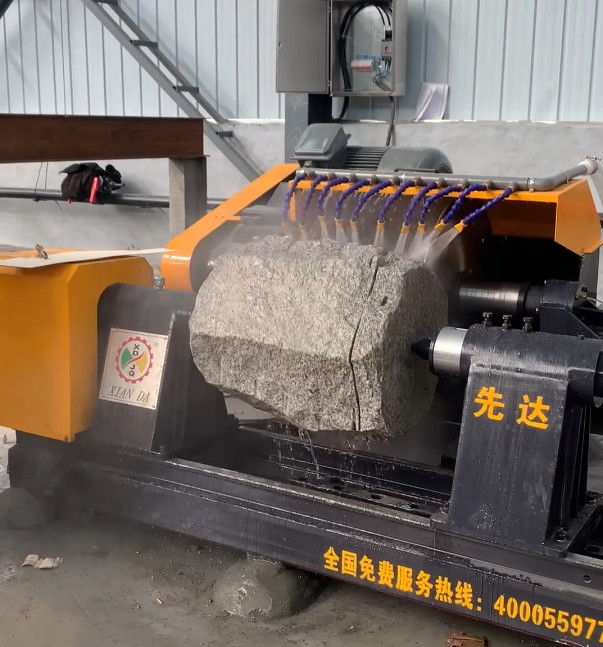

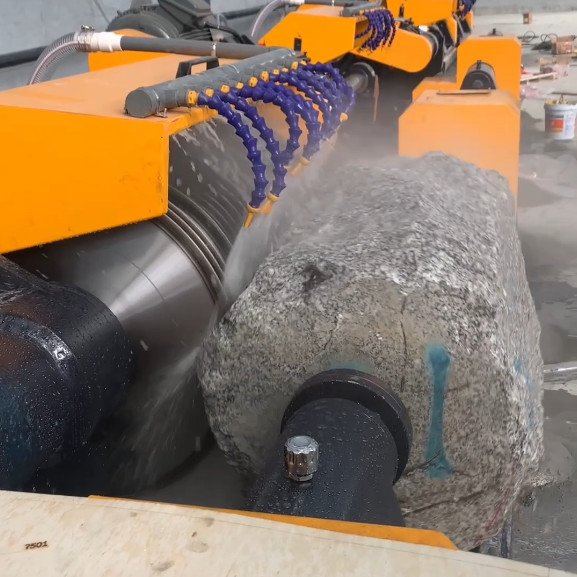

The BFM-600 Round Ball Forming Machine transforms raw stone blocks into precision spheres in record time. Featuring a revolutionary inclined design and dual-frequency speed regulation, this industrial-grade former delivers unmatched efficiency for sculpting rotating special-shaped stones. Ideal for granite, marble, and hard ceramics.

Key Features & Benefits

1. Inclined Structural Design

• Optimized gravity-assisted workflow reduces operator fatigue.

• Enhanced stability during high-torque cutting operations.

2. Dual Frequency Conversion Control

• Independently adjust rotational and feed speeds (0–150 RPM).

• Match cutting parameters to material hardness (e.g., basalt vs. limestone).

3. Multi-Blade Cutting System

• 6x Tungsten-Carbide blades for simultaneous rough shaping.

• 40% faster material removal vs. single-blade competitors.

4. Large-Diameter Capacity

• Processes spheres up to 600mm (24") in diameter.

• Compatible with sizes: 400mm | 500mm | 600mm.

5. Productivity Focused

• Reduces initial shaping time by 50% for monuments, garden ornaments, and architectural elements.

• Automated lubrication system extends blade life by 30%.

  Technical Specifications



  Parameter	Unit	BFM-600
  Maxprocessing diameter	mm	Ф600
  Spindle shaft diameter	mm	Ф100
  Holding timber shaft diameter	mm	Ф70
  Main motor	kw	30/37(Optional)
  Gross power	kw	36/43(Optional)
  Gross weight	kg	4000
  Outline dimension	mm	2900*3000*1600
  Water consumption	m3/h	≈8





  ---

  Applications

  • Monument Stones: Cemetery markers, religious sculptures.

  • Landscaping: Garden spheres, fountain balls.

  • Architectural: Balustrades, decorative columns.

  • Materials: Granite, marble, onyx, travertine, volcanic rock.

  ---

  Why Choose BFM-600?

  ✅ Google-Ranked Keywords: "Stone Sphere Machine," "Large Ball Former," "Rotary Stone Shaper."
  ✅ Precision Engineering: Laser-aligned blade system ensures ±0.5mm initial roundness.
  ✅ Low Maintenance: Quick-release blade cartridges (tool-free replacement).
  ✅ Safety Certified: Emergency stop + overload auto-shutdown (CE compliant).
