Home /Products/Stone Profile Cutting Machine/Gantry Style Automatic Profiling Cutting Machine For Stone Decoration Line

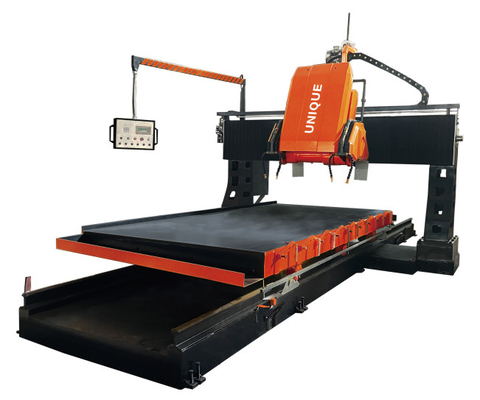

Gantry Style Automatic Profiling Cutting Machine For Stone Decoration Line

1set
MOQ
To Be Negotiated
Price
Gantry Style Automatic Profiling Cutting Machine For Stone Decoration Line
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: DNFX - 1800
Control: PLC
Max Cutting Diamension: Φ400-600mm
Max Lifting Travel Of Cutting Frame: 250mm
Dimension Of Worktable: 3500*1800mm
Main Motor: 15kw
Gross Motor: 17.5kw
Outline Dimension: 6000*3600*2500mm
Water Consumption: 6m3/H
Gross Weight: 6000kg
Use For: Cutting Profiling Lines,Column,Column Slab
Sagment Qty: Two
Transport Package: Load In A 20 Feet Container
Specification: 6000*3600*2500mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Profiling Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Operation Mode: Automatic
Power Source: Electric
Highlight:

Gantry Style Stone Profiling Cutting Machine

,

Granite Cutting Machine 250mm

,

Automatic Profiling Cutting Machine
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API
Model Number: DNFX - 1800
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Supply Ability: 1000 Sets Per Year
Product Description
Gantry Style Automatic Profiling Cutting Machine For Stone Decoration Line
Gantry Style Automatic Profiling Cutting Machine For Stone Decoration Line 0
Product Specifications
Model NO. DNFX - 1800
Control PLC
Max Cutting Diamension Φ400-600mm
Max Lifting Travel of Cutting Frame 250mm
Dimension of Worktable 3500*1800mm
Main Motor 15kw
Gross Motor 17.5kw
Outline Dimension 6000*3600*2500mm
Water Consumption 6m3/H
Gross Weight 6000kg
Usage Cutting Profiling Lines, Column, Column Slab
Automation Automatic
Cutting Accuracy High
Safety Protection High
Power Source Electric (380V)
Product Description

The CNFX-1800/DNFX-1800 gantry style automatic profiling cutting machine features:

  • CNC or PLC control system for automated profiling
  • Diamond circular saws for precise stone cutting
  • Inverter-controlled vertical and horizontal movement
  • Speed adjustment based on stone material
  • Double-blade design for higher cutting efficiency and stability

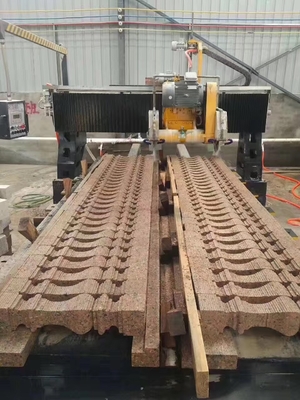

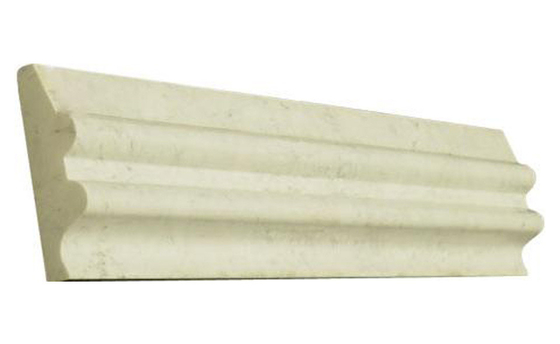

  • Ideal for straight lines, arc-shaped lines, and Roman columns

Note: Optional rotating worktable available for processing arc-shaped lines.

Technical Parameters
Parameter Unit DNFX-1800 CNFX-1800
Blade diameter mm 400-600 400-600
Max lifting travel of cutting frame mm 250 250
Worktable dimension mm 3500*1800 3500*1800
Main motor kw 15 15
Gross motor kw 17.5 17.5
Outline dimension mm 6000*3600*2500 6000*3600*2500
Gross weight kg 6000 6000
Water consumption m3/h 6 6
Our Service
  • 32 years manufacturing experience with ISO & CE certification
  • Top 5 stone cutting machine manufacturer in China
  • Products exported to over 20 countries
  • Machine testing video available before shipment
  • Competitive pricing for large quantity orders
  • 24/7 online after-sales service
  • Professional installation guidance and operator training
Frequently Asked Questions
How to place an order?

1. Inquiry - Professional quotation
2. Confirm price, lead time, and payment terms
3. Receive proforma invoice
4. Make deposit payment
5. Production begins after payment confirmation

How is after-sales service provided?

Our engineers can be dispatched for machine assembly and troubleshooting.

Do you accept OEM requests?

Yes, we can customize certain parts according to customer requirements.

Are you a manufacturer?

Yes, we have been manufacturing stone machinery for over 30 years.
