Easy Operation CNC Linear Profiling Machine For Curve Linear

1 SET
MOQ
To be negotiable
Price
Easy Operation CNC Linear Profiling Machine For Curve Linear
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Depth: High
Cutting Edge: Smooth
Operation Mode: Automatic
Control System: Computerized
Cutting Surface: Flat
Product Name: Stone Profile Cutting Machine
Cutting Material: Stone
Cutting Width: Wide
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Application: Machinery & Hardware
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Hs Code: 84641090
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Power Source: Electric
Highlight:

Curve Linear CNC linear profiling machine

,

Easy operation CNC linear profiling machine

,

CNC Linear Profiling Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: DNFX-1300/1400 CNFX-1300/1400
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
Easy Operation CNC Linear Profiling Machine For Curve Linear
Product Attributes
Cutting Depth High
Cutting Edge Smooth
Operation Mode Automatic
Control System Computerized
Cutting Surface Flat
Product Name Stone Profile Cutting Machine
Cutting Material Stone
Cutting Width Wide
Trolley Size 1300*3000mm/1400*3500mm
Cutting Method Laser
Cutting Accuracy High
Model No LCMM-1300/1800
Application Machinery & Hardware
Max Cutting Diameter 2500mm
Usage Cutting
Maintenance Easy
Hs Code 84641090
Safety Protection High
Max Cutting Height 1150mm
Blade Diameter Range 400-600mm
Max Cutting Depth 150mm
Power Source Electric
Product Description
This machine adopts PLC / CNC system with double blades, it's suitable for profiling the linear, also it can cut the square balusters. With extra rotating table, it can cut the curve linear. Easy operation makes it popular especially for new operators.
Support and Services
  • Installation and setup of the machine
  • Training and user manuals
  • Regular maintenance and repair services
  • Technical support via phone or email
  • Replacement parts and accessories
Our team of experts is dedicated to providing excellent customer service and ensuring that your stone cutting machine is operating at optimal performance. Contact us for any technical support or service needs.
Technical Specifications
Parameter Unit DNFX-1300/1400 CNFX-1300/1400
Blade diameter mm 350-600 350-600
Max lifting travel of cutting frame mm 600 600
Trolley size mm 1300*3000 1400*3500
Main motor kw 15 15
Gross power kw 18.5 18.5
Outline dimension mm 5500*2300*2300 6000*2400*2300
Gross weight kg 4000 4500
Water consumption m³/h 6 6
Product Gallery

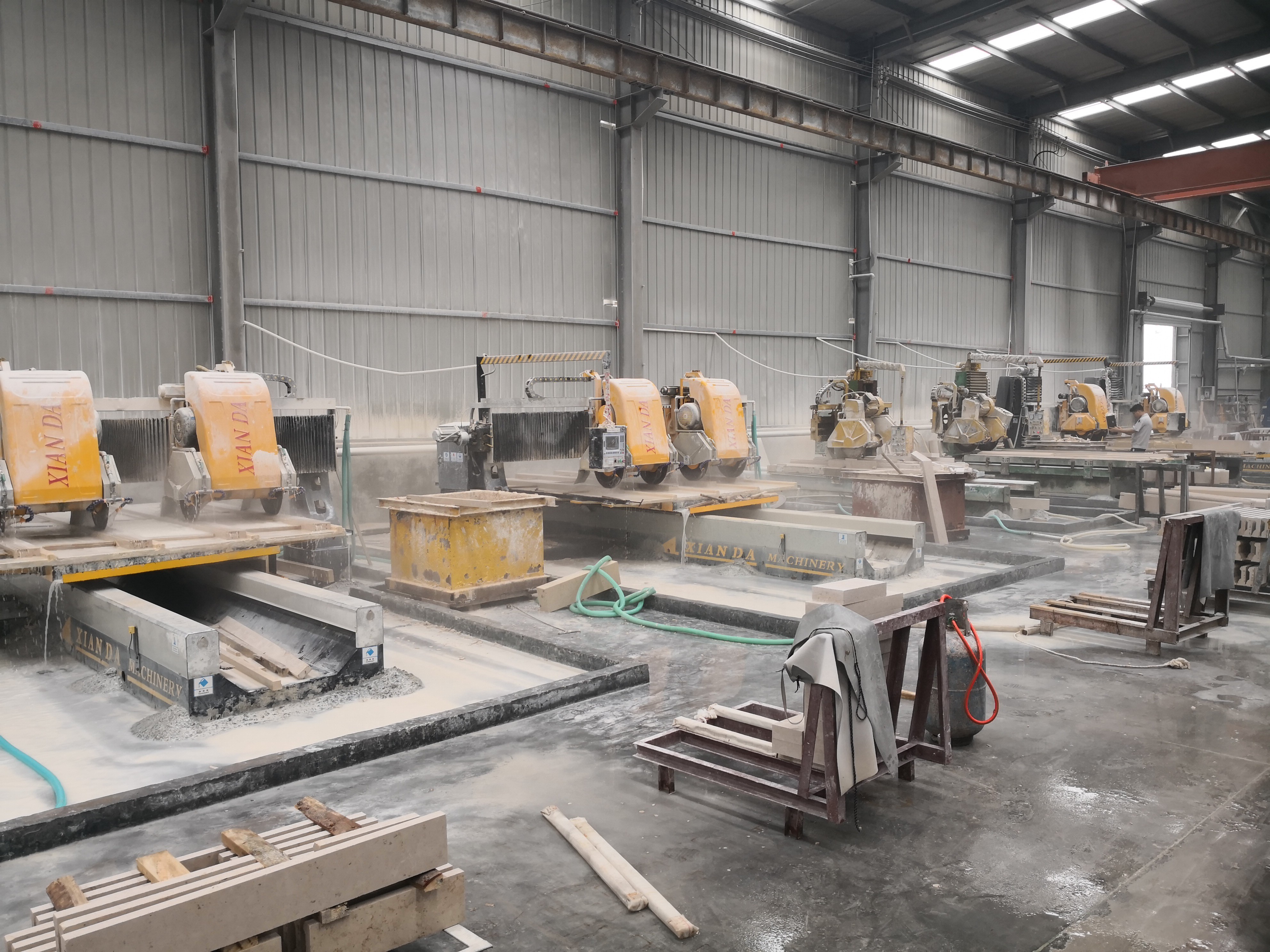

Easy Operation CNC Linear Profiling Machine For Curve Linear 0

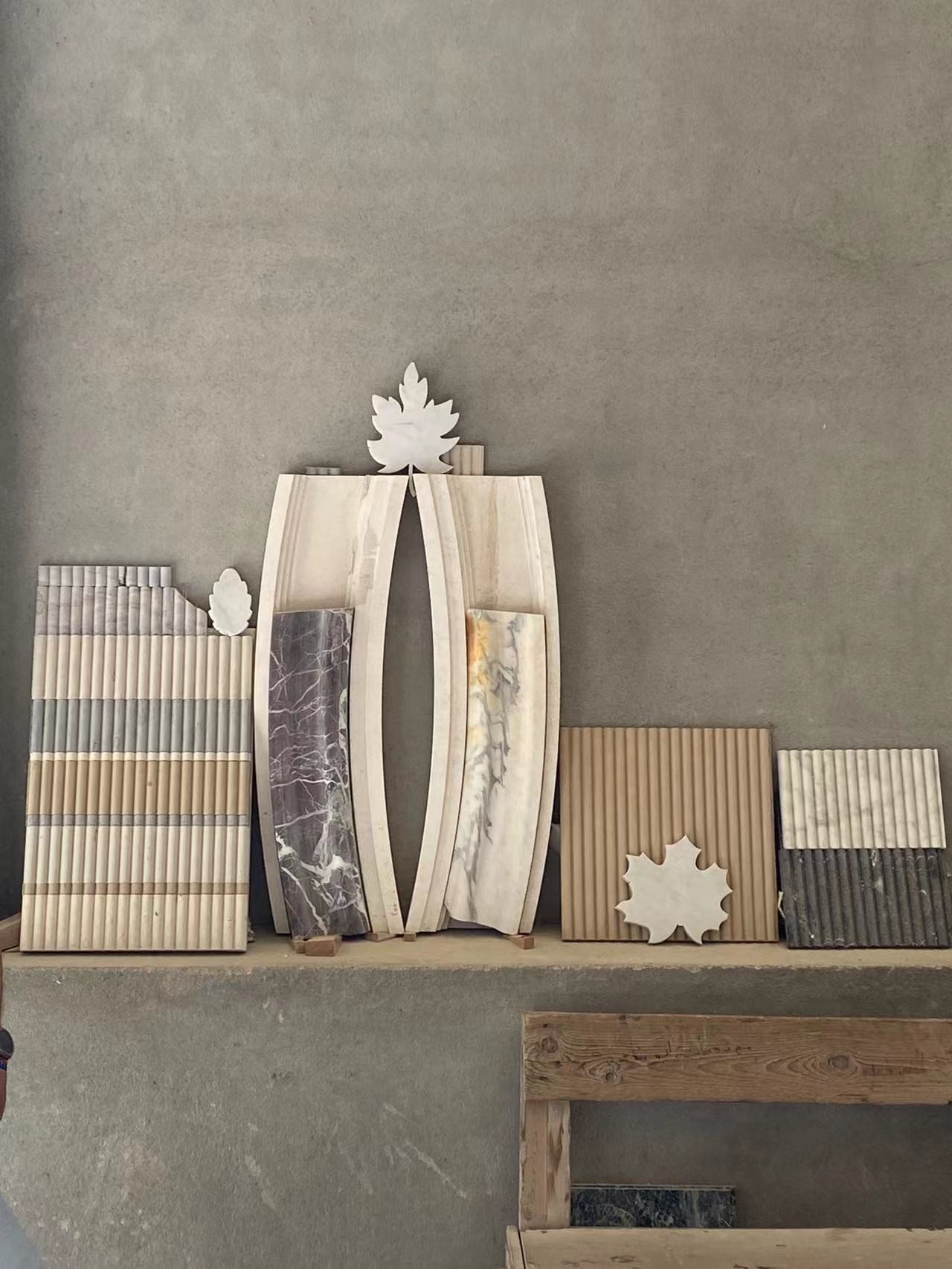

Easy Operation CNC Linear Profiling Machine For Curve Linear 1

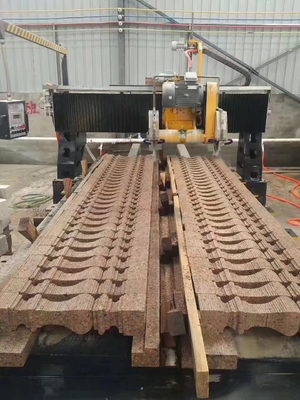

Easy Operation CNC Linear Profiling Machine For Curve Linear 2
