Home /Products/Stone Profile Cutting Machine/Curve Linear Stone Profile Cutting Machine 15kw For Square Baluster

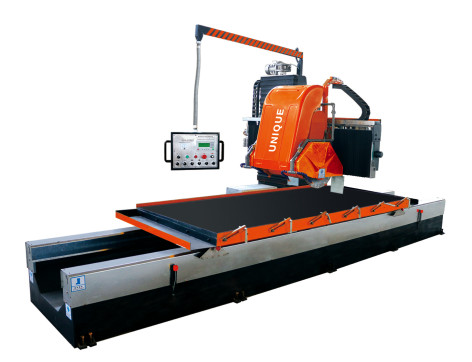

Curve Linear Stone Profile Cutting Machine 15kw For Square Baluster

1set
MOQ
Curve Linear Stone Profile Cutting Machine 15kw For Square Baluster
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: DNFX-1300/1400 CNFX-1300/1400
Automation: Automatic
Cutting Ability: High Speed
Control: PLC/CNC
Blade Diamension: Φ350-600mm
Max Lifting Travel Of Cutting Frame: 650mm
Trolley Size: 1300*3000mm;1400*3500mm
Main Motor: 15kw
Gross Motor: 18.5kw
Outline Dimension: 5500*2300*2300mm;6000*2400*2300mm
Water Consumption: 6m3/H
Gross Weight: 4000kg;4500kg
Use For: Cutting Profiling Lines,Column,Column Slab
Blade Qty: Two
Transport Package: Plastic Package, Suitable For Sea Transportation
Specification: 5500*2300*2300mm; 6000*2400*2300mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
After-sales Service: One Year For Spare Part
Warranty: One Year
Type: Profiling Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Customization: Available | Customized Request
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Operation Mode: Automatic
Power Source: Electric
Highlight:

Stone Profile Cutting Machine 15kw

,

600mm paving stone making machine

,

18.5kw Stone Profile Cutting Machine
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API
Model Number: DNFX-1300/1400 CNFX-1300/1400
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets Per Year
Product Description
Curve Linear Stone Profile Cutting Machine 15kw For Square Baluster
Product Specifications
Attribute Value
Model NO. DNFX-1300/1400 CNFX-1300/1400
Automation Automatic
Cutting Ability High Speed
Control PLC/CNC
Blade Diameter Φ350-600mm
Max Lifting Travel of Cutting Frame 650mm
Trolley Size 1300*3000mm;1400*3500mm
Main Motor 15kw
Gross Motor 18.5kw
Outline Dimension 5500*2300*2300mm;6000*2400*2300mm
Water Consumption 6m3/H
Gross Weight 4000kg;4500kg
Use for Cutting Profiling Lines, Column, Column Slab
Blade Quantity Two
Transport Package Plastic Package, Suitable for Sea Transportation
Specification 5500*2300*2300mm; 6000*2400*2300mm
Trademark UNIQUE
Origin Jinjiang, Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
After-sales Service One Year for Spare Part
Warranty One Year
Type Profiling Cutting Machine
Usage Granite
Application Machinery & Hardware
Source Voltage 380V
Customization Available
Product Description

The Curve Linear Profiling Machine for Square Baluster (Model DNFX-1300/1400 CNFX-1300/1400) features a PLC/CNC control system with dual blades, making it ideal for both linear profiling and square baluster cutting. The optional rotating table enables curve linear cutting, while its user-friendly operation makes it suitable for both experienced operators and beginners.

Technical Parameters
Parameter Unit DNFX-1300 CNFX-1400
Blade Diameter mm φ350-φ600 φ350-φ600
Max Lifting Travel of Cutting Frame mm 650 650
Trolley Size mm 1300*3000 1400*3500
Main Motor kw 15 15
Gross Power kw 18.5 18.5
Outline Dimension mm 5500*2300*2300 6000*2400*2300
Gross Weight kg 4000 4500
Water Consumption m³/h 6 6
Our Service
  • Machine testing video available upon request
  • Rigorous inspection and testing before shipment
  • 24-hour online after-sales support
  • Comprehensive staff training for continuous service improvement
  • Professional technical support for installation, commissioning, and operator training
Curve Linear Stone Profile Cutting Machine 15kw For Square Baluster 0
Shipping Information
Curve Linear Stone Profile Cutting Machine 15kw For Square Baluster 1 Curve Linear Stone Profile Cutting Machine 15kw For Square Baluster 2
Frequently Asked Questions
How to place an order with your company?
  1. Submit inquiry for professional quotation
  2. Confirm price, lead time, logo, and payment terms
  3. Receive proforma invoice with official seal
  4. Make deposit payment and send bank receipt
  5. We confirm receipt and begin production with estimated completion time
How is after-sales service provided?
Our engineers can be dispatched for machinery assembly and technical support.
Are you a manufacturer?
Yes, we are a stone machinery factory with over 30 years of experience.
Does this product support customization?
Yes, we offer customization options to meet specific requirements.
How do you ship the products?
Products are securely packaged in plastic suitable for sea transportation.
What is the warranty for the product?
We provide a one-year warranty with spare parts coverage.
