Home /Products/Stone Profile Cutting Machine/CNC Stone Gantry Profiling Linear Cutting Machine 1000mm

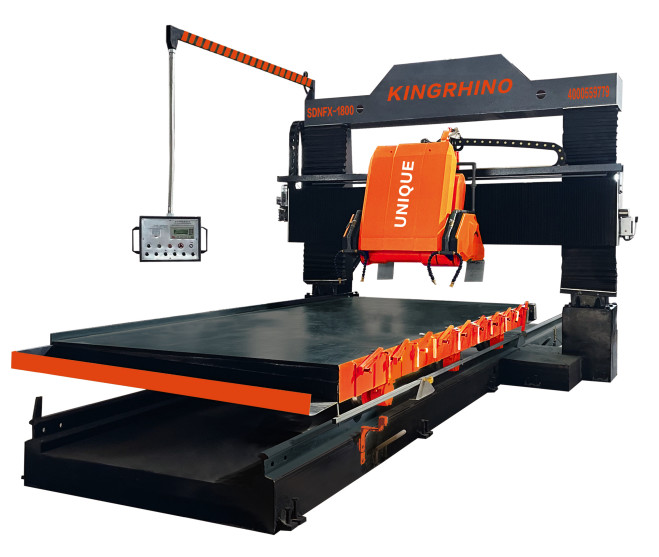

CNC Stone Gantry Profiling Linear Cutting Machine 1000mm

1set
MOQ
To Be Negotiated
Price
CNC Stone Gantry Profiling Linear Cutting Machine 1000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: SDNFX-1800
Cutting Ability: High Speed
Control: PLC
Use For: Linear Profiling,Balustrade Cutting
Blade Diameter: 300-600mm
Max Lifting Travel Of Cutting Frame: 1000mm
Worktable Diamension: 3500X1800mm
Main Motor: 15kw
Gross Motor: 20kw
Gross Weight: 7000kg
Water Consumption: 6m³/H
Specification: 6000x3600x3300mm
Trademark: UNIQUE
Origin: Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Warranty: 12 Months
Type: Bridge Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Customization: Available | Customized Request
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Operation Mode: Automatic
Power Source: Electric
Highlight:

CNC Stone Cutting Machine

,

cnc profile cutting machine 600mm

,

Linear Cutting Machine 1000mm
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: ISO
Model Number: SDNFX-1800
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Product Description
CNC Stone Gantry Profiling Linear Cutting Machine 1000mm
Product Specifications
Attribute Value
Model NO. SDNFX-1800
Cutting Ability High Speed
Control PLC
Use for Linear Profiling, Balustrade Cutting
Blade Diameter 300-600mm
Max Lifting Travel of Cutting Frame 1000mm
Worktable Dimension 3500×1800mm
Main Motor 15kw
Gross Motor 20kw
Gross Weight 7000kg
Water Consumption 6m³/H
Specification 6000×3600×3300mm
Trademark UNIQUE
Origin Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Warranty 12 Months
Technical Description

The SDNFX-1800 CNC Stone Gantry Profiling Linear Cutting Machine features computer-controlled profiling lines with a robust gantry structure. It automatically tracks models of curved or straight lines through a fiber optic probe, then uses diamond circular saws to precisely cut stone materials according to the programmed patterns.

Key features include inverter-controlled vertical and horizontal movement with adjustable speed based on material requirements, PLC system for high automation, and dual-blade design for enhanced cutting efficiency and stability. Ideal for creating lines, arc-shaped patterns, Roman columns, and other architectural elements.

Technical Parameters
Parameter Unit SDNFX-1800
Blade diameter mm φ300-φ600
Max lifting travel of cutting frame mm 1000
Worktable dimension mm 3500×1800
Main motor kw 15
Gross motor kw 20
Outline dimension mm 6000×3600×3300
Gross weight kg 7000
Water consumption m³/h 6
Certifications
CNC Stone Gantry Profiling Linear Cutting Machine 1000mm 0
Our Services
Machine testing videos available and strict quality inspection before shipment
32 years manufacturing experience with over 70% market share in China for special shape stone cutting machines
Top 5 manufacturer with ISO & CE certification
Global distribution to over 20 countries with 10+ years international experience
Competitive pricing and volume discounts available
24/7 after-sales support with professional installation guidance and operator training
Frequently Asked Questions
Does this product support customization?

Yes, we offer customization options to meet specific requirements.

How do you ship the products?

Products are carefully packaged and shipped via sea freight for international orders.

What is the warranty for the product?

This machine comes with a 12-month warranty against manufacturing defects.

For any additional questions, our team will respond promptly to your inquiries.
