Home /Products/Stone Profile Cutting Machine/CNC Column Granite Marble Stone Profile Cutting Machine Diamond Wire Saw

CNC Column Granite Marble Stone Profile Cutting Machine Diamond Wire Saw

1set
MOQ
US $32,000-38,000 / Set
Price
CNC Column Granite Marble Stone Profile Cutting Machine Diamond Wire Saw
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Wire Saw Rope Machine
Main Motor: 7.5kw
Outline Dimension: 6500*6300*3800mm
Water Consumption: 4m3/H
Max Processing Size: 3000*2000*1500mm
Gross Motor: 11kw
Trolley Size: 1300*3000mm/1400*3500mm
Cutting Method: Laser
Cutting Accuracy: High
Model No: LCMM-1300/1800
Application: Machinery & Hardware
Max Cutting Diameter: 2500mm
Usage: Cutting
Maintenance: Easy
Hs Code: 84641090
Safety Protection: High
Max Cutting Height: 1150mm
Blade Diameter Range: 400-600mm
Max Cutting Depth: 150mm
Operation Mode: Automatic
Power Source: Electric
Highlight:

CNC Stone Profile Cutting Machine

,

11kw granite marble cutting machine

,

Granite Marble diamond rope cutting machine
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CNC-2000/2500/3000
Payment & Shipping Terms
Packaging Details: 6500*6300*3800mm
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets Per Year
Product Description
CNC Column Granite Marble Stone Profile Cutting Machine Diamond Wire Saw
Product Specifications
Attribute Value
Product name Wire Saw Rope Machine
Main Motor 7.5kw
Outline Dimension 6500*6300*3800mm
Water Consumption 4m3/H
Max Processing Size 3000*2000*1500mm
Gross Motor 11kw
Trolley Size 1300*3000mm/1400*3500mm
Cutting Method Laser
Cutting Accuracy High
Model No LCMM-1300/1800
Application Machinery & Hardware
Max Cutting Diameter 2500mm
Usage Cutting
Maintenance Easy
Hs Code 84641090
Safety Protection High
Max Cutting Height 1150mm
Blade Diameter Range 400-600mm
Max Cutting Depth 150mm
Operation Mode Automatic
Power Source Electric
Product Overview
CNC Column Granite Marble Profile Cutting Diamond Wire Saw Machine
Model NO.: CNC-2000/2500/3000
Certification: API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
Function: Cutting Marble, Granite, Slate, Nature Stone, etc
Origin: Jinjiang, Fujian, China
Production Capacity: 1000 Sets/Year
Detailed Description

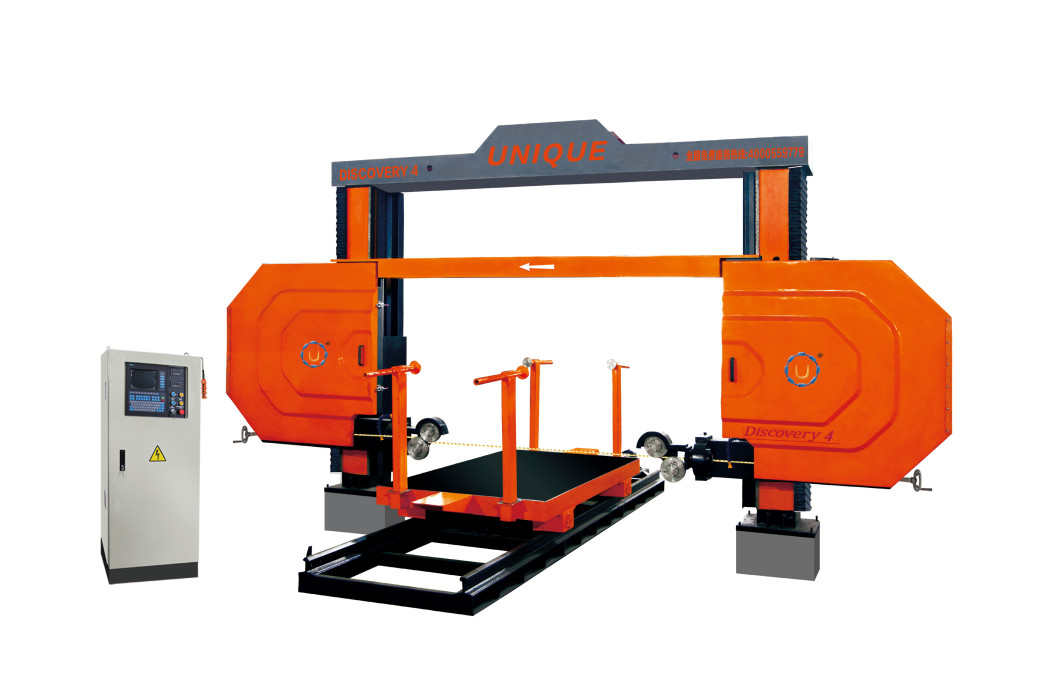

The CNC Diamond Wire Stone Cutting Machine is designed for precision cutting of column slabs, semi-circular slabs, English letters, and other complex special shapes in materials including marble, granite, and natural stone.

CNC Column Granite Marble Stone Profile Cutting Machine Diamond Wire Saw 0 CNC Column Granite Marble Stone Profile Cutting Machine Diamond Wire Saw 1
Key Features
  • CNC controlled four-axis linkage system for precise shaping
  • Heavy load bearing structure with four orbits on each upright column
  • Synchronized lifting system with enhanced accuracy
  • Adjustable guide wheel system controlled by CNC
  • Automatic wire break alarm system
  • 1600mm aluminum wheel with oil pump controlled rope tension
  • Capable of cutting circular stone slabs, roman columns, numerals, letters, and custom shapes
Technical Parameters
Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size (L*W*H) mm 3000*2000*1500 3000*2500*1500 3000*3000*1500
Dimension of worktable mm 2500*1300 2500*1300 2500*1300
Main motor Kw 7.5 7.5 7.5
Gross motor Kw 11 11 11
Outline dimension(L*W*H) mm 6500*6300*3800 7000*6300*3800 7500*6300*3800
Gross weight Kg 5000 5500 6000
Water consumption M3/h 4 4 4
After-Sale Service

Our dedicated service team provides comprehensive support including 24-hour response time, technical assistance, and free replacement for quality-related issues. All machines come with a one-year warranty.

Frequently Asked Questions
Manufacturer Profiles

We are a Top 10 stone cutting machine manufacturer with ISO & CE certification since 1985, holding 70% of China's market share in special shape stone cutting machines.

Quality Control

Each machine undergoes strict inspection with optional testing videos provided before shipping.

Delivery Time

Standard delivery is three weeks after payment confirmation, depending on order quantity.

Keywords: Stone machine, stone cutting machine, marble cutter, wire cutting machine, mono wire cutting machine
